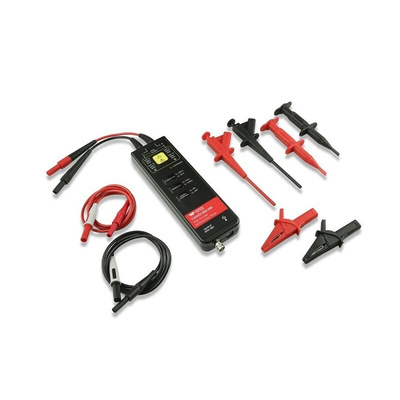

T3HVD1500-70 Probe Type, T3HVD1500-70 | Teledyne LeCroy Oscilloscope Probe, Probe Type: Differential 70MHz 1500V 50:500dB

The Teledyne Test Tools new range of high voltage differential probes are wide bandwidth active differential voltage probes, featuring models with bandwidths up to 200 MHz bandwidth, voltages up to ± 7000 V (DC + Peak AC), fast and accurate waveform capture, measurement accuracy of ± 2 % and low test circuit loading. These probes can be used with any oscilloscope having a 1 MΩ BNC input.
Bandwidth of 70 MHz± 1500 V Differential signal input (DC + Peak AC).Combined single ended and differential measurement capability.Use with any scope with a 1 MΩ input and BNC connector.Combined single ended and differential measurement capabilityOver-Voltage alarm with dual indicators.
Applications
Power electronics.Multi-phase motor drives (electric vehicles, etc).Inverters and power conversion.Domestic and industrial photo-voltaic (PV) system design.General vehicle electronics.Power supply design.Floating voltage measurements.Domestic appliances (washing machines, induction hobs, etc).Research and development.Universities, general electronics and education
