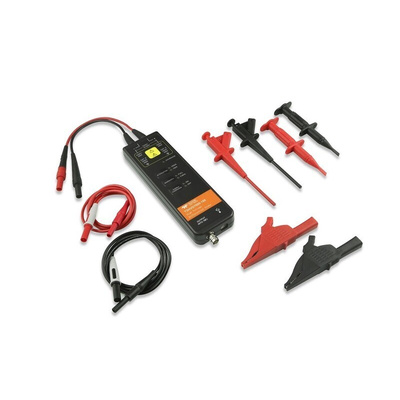

Teledyne LeCroy T3HVD7000-100 Oscilloscope Probe, Differential Type, 100MHz, 100:1000dB, BNC Connector

The Teledyne Test Tools new range of high voltage differential probes are wide bandwidth active differential voltage probes, featuring models with bandwidths up to 200 MHz bandwidth, voltages up to ± 7000 V (DC + Peak AC), fast and accurate waveform capture, measurement accuracy of ± 2 % and low test circuit loading. These probes can be used with any oscilloscope having a 1 MΩ BNC input.

Bandwidth of 100 MHz
± 7000 V Differential signal input (DC + Peak AC).
Combined single ended and differential measurement capability.
Use with any scope with a 1 MΩ input and BNC connector.
Combined single ended and differential measurement capability
Over-Voltage alarm with dual indicators.

Applications

Power electronics.
Multi-phase motor drives (electric vehicles, etc).
Inverters and power conversion.
Domestic and industrial photo-voltaic (PV) system design.
General vehicle electronics.
Power supply design.
Floating voltage measurements.
Domestic appliances (washing machines, induction hobs, etc).
Research and development.
Universities, general electronics and education

Datasheet - T3HVD7000-100
