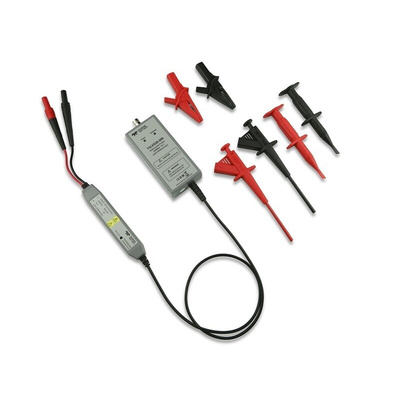

Teledyne LeCroy T3LVD20-200 Oscilloscope Probe, Active, Differential Type, 200MHz, 10:1dB, BNC Connector

The Teledyne Test Tools new low voltage differential probe is a wide bandwidth active differential voltage probe, featuring 200 MHz bandwidth, ± 20 V (DC + Pk AC), fast and accurate waveform capture, measurement accuracy of 2 % and low test circuit loading. This probe can be used with any oscilloscope having a 50 Ω or 1 MΩ BNC input.

Bandwidth of 200 MHz
± 20 V Differential signal input (DC + Peak AC).
Combined single ended and differential measurement capability.
± 60 V maximum common mode voltage input.
High Common Mode Rejection Ratio of >50 dB at 10 MHz, >80 dB at 50 Hz / 60 Hz.

Applications

Embedded low voltage power design and power component measurements.
Low voltage consumer electronics and household appliances.
Domestic and industrial photo-voltaic (PV) system design.
Vehicle electronics.
Industrial and military control electronics.
Single ended and differential busses (CAN, CAN FD, LIN, I2 C, SPI, MIL-STD-1553B, UART, ARINC429, etc).
Research and development.
Universities, general electronics and education

Datasheet - T3LVD20-200
