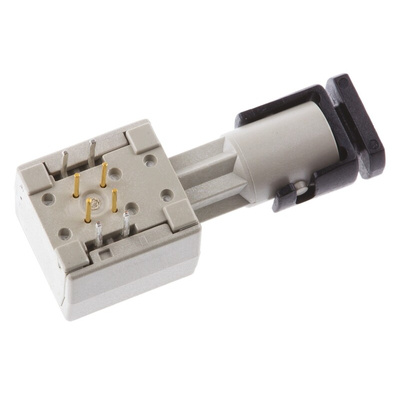

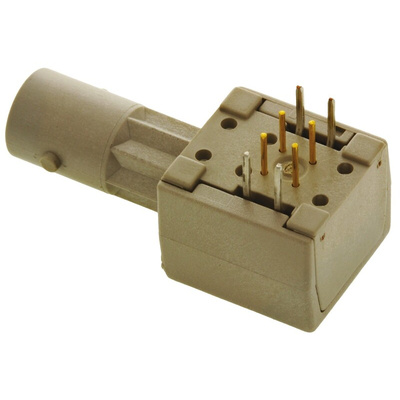

Broadcom HFBR-1412Z, 5MBd Fibre Optic Transmitter 820nm, Square ST Connector, 12.7 x 12.7 x 10.2mm, Передатчик

HFBR-14xxZ and HFBR-24xxZ Series Fibre Optic Components

Optical Receiver for Industrial Applications with Conductive ST-Threaded Port, RoHS Compliant

The HFBR-0400Z Series of components is designed to provide cost effective, high performance fiber optic communication links for industrial, power generation, power distribution, medical, transportation and gaming applications.

The HFBR-24x2Z fiber optic receiver is designed to operate with the Broadcom HFBR-14x2Z and HFBR-14x4Z fiber optic transmitter up to 5MBd. This part is characterized with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm HCS® fiber optic cable. HFBR-24x2Z receiver incorporates an integrated photo IC containing a photodetector and dc amplifer driving an open-collector Schottky output transistor.

This product is also available in other popular industry-standard connectors: SMA, SC and FC.

Features

•Low Cost Receiver

•Integrated Photo IC containing a photodetector and dc amplifier

•Data Rate up to 5MBd

•Link Distances up to 2km

•Specified with 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 mm HCS Fiber

•Wide Operating Temperature Range -40C to +85C

•Unique Optical Port Design for Efficient Coupling

•Auto-Insertable and Wave Solderable

•No Board Mounting Hardware Required

Applications

•Computer to Peripheral Links

•Computer Monitor Links

•Digital Cross Connect Links

•Modems and Multiplexers

•Suitable for Tempest Systems

•Industrial Control Links

Options:

•HFBR-2412TCZ (Conductive ST-Threaded Port)

•HFBR-2412TZ (Plastic ST-Threaded Port)

•HFBR-2412Z (Plastic ST Port)

Designed to operate with the HFBR2412 receiver
Comes in an ST connector package, containing 820nm LED, capable of launching optical power into several PCS fibre cable sizes
Ideal for large size fibre such as 100/140mm, with an optical power of 11.5dBm at 60mA
Useful for systems where star couplers, taps or inline connectors create large fixed losses

DIP Emitter/Transmitter

Fibre Optics, Avago Technologies

Datasheet
