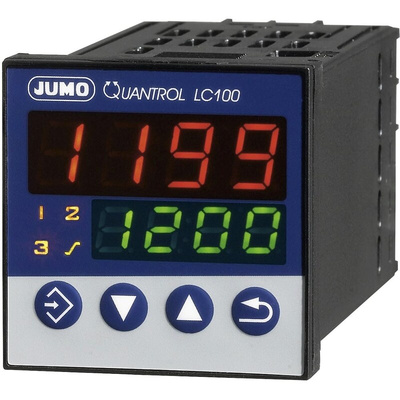

702031/8-1200-23, Jumo LC100 Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 2 Output Relay, 240 V Supply Voltage PID

The Jumo Quantrol is a compact, easy to use, and self-optimizing controller series. The controller is used for two-state and three-state control applications as well as for the control of regulating valves or SCR power controllers via a continuous controller output. The universal analog input is for RTD temperature probes, thermocouples, or current / voltage signals and can be programmed by the user.

Two seven-segment LED displays (red/green)
The values can be displayed in °C or °F
LED status indicator for the output
Sensor monitoring
Self-optimization (auto tuning) for exact PID control
Manual/automatic mode
Configurable limit value monitoring
