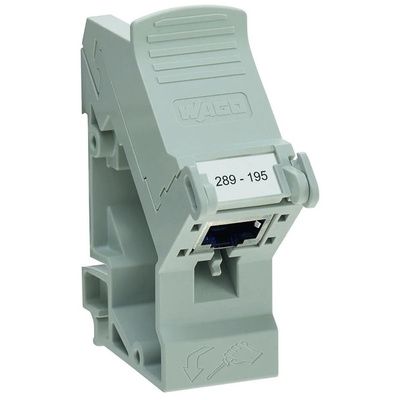

289-195, Wago 8-Contact Female Interface Module, RJ45 Connector, DIN Rail

Wago Interface Module, 24 to 22AWG Wire Size Range, 750 Mating Cycles - 289-195

Build a bridge from your external device to your control unit using this 8-contact interface module from Wago. It enables the exchange of signals between the systems in formats they can both process. You can connect your appliance by simply plugging it into the RJ45 socket. As this component features a shield connection, it accommodates a pre-shielded cable for proper grounding. This helps to protect the signals from EMI and static noise to ensure clear quality. Mounting is a cinch as you just clip it to a DIN rail.

Features & Benefits

• Tough gold-over-nickel contacts resist corrosion to maintain transmission integrity
• Trouble-free performance in ambient operating temperatures between -10°C and +60°C
• Wire size range of 24 to 22AWG for flexible cable connection

Applications

• Chemical plants
• Telecommunications equipment
• Measuring instruments
• Automotive engineering

How do I connect my cables to this interface module?

As the module uses IDC technology, you can connect your cables by piercing the sharp points of the terminals through their outer sheaths.

How many times can I reuse this unit?

It's capable of 750 mating cycles, so you can plug and unplug this device multiple times and it will continue to serve.

Datasheet - 289-195

Catalogue - Interface Electronics
