787-712, Wago 787 DIN Rail Power Supply, 85 → 264 V ac, 90 → 373 V dc ac, dc Input, 24V dc dc Output, 2.5A Output,

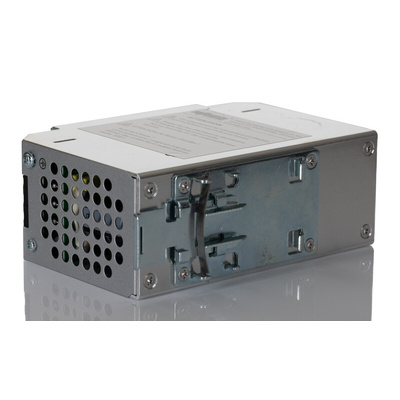

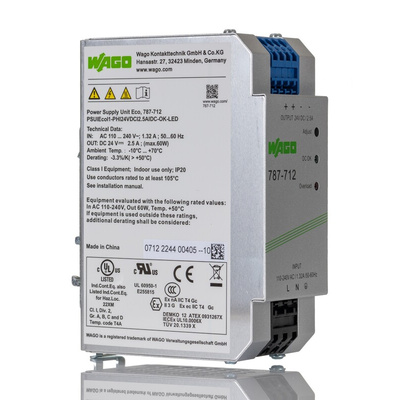

Wago DIN Rail Power Supply, Isolated Outputs, 86% Typical Efficiency - 787 Series - 787-712

Energise your automated industrial components in a flash with this DIN rail power supply from Wago. Its 24V DC output makes it compatible with many standard devices like actuators, sensors and relays, making it a handy operator in your plant. A typical efficiency of 86% means you can rest assured minimal power is lost in the switching process. To save on wiring time, this product features CAGE CLAMP® connections that don't need any special tools.

Features & Benefits

• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Short circuit protection minimises the risk of equipment damage
• Green and red LEDs offer convenient and quick status monitoring
• Natural convection cooling when mounted horizontally, so there's no need for a fan

Applications

• Process control
• Marine and offshore industries
• Pharmaceutical manufacturing
• Electrical engineering

What size DIN rail is compatible with this power supply?

You can mount this device on a standard 35mm DIN rail, so it easily slots into most control cabinets. A small footprint of 92 (H) x 50 (W) x 136mm (D) lets you maximise packing space on your rail.

Datasheet - 787-712

Instruction Sheet - 787-712
