787-722, Wago 787 Switch Mode DIN Rail Power Supply, 90 → 264 V ac, 90 → 373 V dc ac, dc Input, 24V dc dc Output,

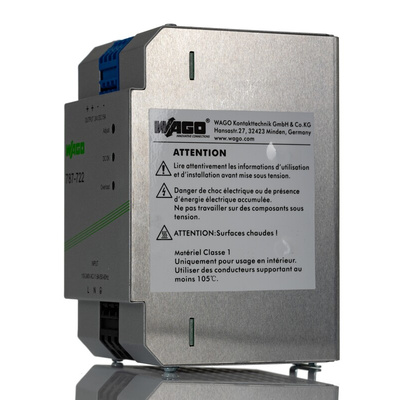

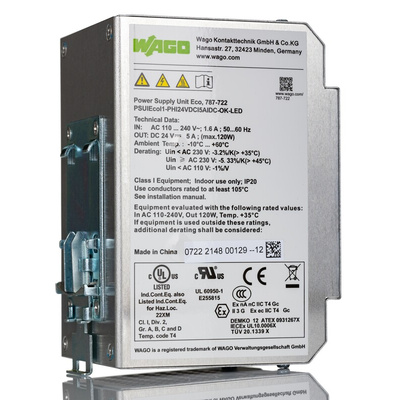

Wago DIN Rail Power Supply, 24V DC Output Voltage, 120W Power Rating - 787 Series - 787-722

When efficiency is a top priority, surge ahead with this DIN rail power supply from Wago. It converts input voltages between 85 and 264V AC or between 90 and 373V DC into a steady output voltage of 24V DC for use with low-voltage equipment. It’s a cinch to install by clipping directly onto a DIN rail. Natural convection cooling prevents the power supply from overheating when it's horizontally mounted, keeping you and your equipment safe.

Features & Benefits

• Short circuit protection kicks in automatically in the event of a fault to protect your machinery from damage
• Efficiency of 86% means little energy is wasted as heat
• LED indicator shows its operating status at a glance
• IP20 rating indicates it’s finger-safe and protected against objects over 12mm in size
• Performs reliably in challenging environments, thanks to a broad operating temperature range between -10°C and +60°C

Applications

• Process control
• Factory automation
• Power distribution

What's the power rating of this DIN rail power supply?

It has a power rating of 120W, making it just the thing for use in heavy-duty systems.

Datasheet - 787-722

Instruction Sheet - 787-722
