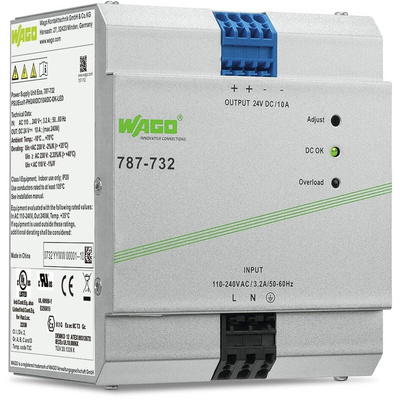

787-732, Wago 787 Switch Mode DIN Rail Power Supply, 90 → 264 V ac, 90 → 373 V dc ac, dc Input, 24V dc dc Output,

Wago DIN Rail Power Supply, Switched-Mode Type, 86% Efficiency - 787 Series - 787-732

Worried about overloading your circuits? Take charge with this DIN rail power supply from Wago. It efficiently converts input voltages of 85 to 264V AC and 90 to 373V DC to a steady 24V DC output. This helps to ensure you'll have the stability you need to power sensitive electronic components safely. When the device is horizontally mounted, air circulates freely around it for natural convection cooling, helping it to keep its cool. For installation in a snap, simply clip it onto a DIN rail.

Features & Benefits

• IP20 rating means it's touchproof and protected from objects over 12mm in size
• Power rating of 240W for use in high-power setups
• Efficiency of 86% means minimal energy is wasted is heat
• Automatic shutdown in the event of a short circuit for protection against electrical damage
• MTBF of 480,000 hours for long-lasting performance

Applications

• Automotive manufacturing
• Security systems
• IT networking

How can I monitor the status of this device?

It comes with red and green LED indicators, so you can see its operating status in a flash.

Datasheet - 787-732

Instruction Sheet - 787-732
