857-412, Wago 857 Series Signal Conditioner, Voltage Input, Current, Voltage Output, 24V dc Supply, IECEx

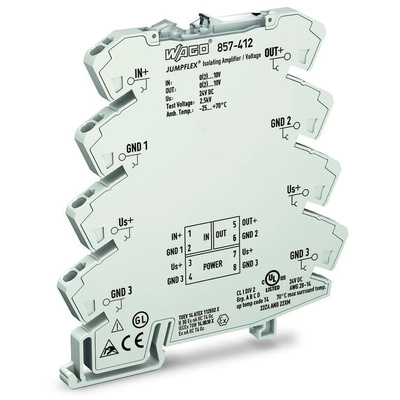

Wago Signal Conditioner, Push-In Terminals, Rail-Mount Type - 857 Series - 857-412

Tune your measuring equipment's signals to fit your setup with this Wago signal conditioner. It isolates sensor equipment from high voltages, effectively amplifying weak signals for reliable conversion. With protection against surge voltages up to 2.5kV, the device cuts the risk of damage to sensitive measuring hardware to keep its system running smoothly. Simple push-in terminals mean it takes conductors without you having to reach for your tools. By handling signals in just 3.5ms, the conditioner converts sensor information in a flash.

Features & Benefits

• Maximum transmission error of 0.1%, providing accurate signal output
• Clips onto standard DIN rails for quick and secure mounting
• Works with 0 to 10V and 2 to 10V signal formats, fitting into many measuring systems
• Maximum current consumption of 25mA for efficient electrical usage

Applications

• Water treatment works
• Automotive manufacturing
• Process control
• Chemical production

How do I tell this component's connections apart?

This signal conditioner features a labelled front plate, marking its terminals for simple connection identification.

What kinds of conductors can I use this conditioner with?

You can connect this product with solid and stranded wires sized between 0.08 and 2.5mm² for versatile use.
