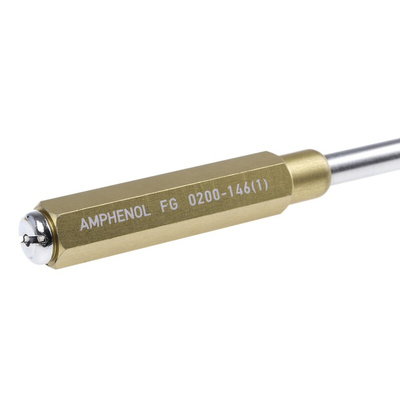

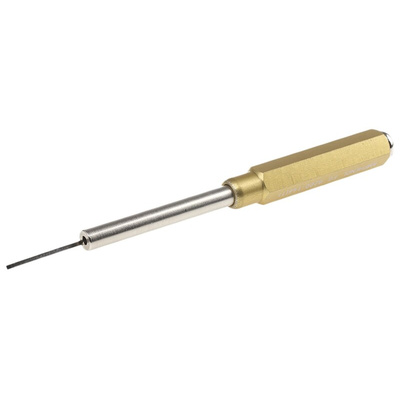

FG-0200-146(1), Amphenol Industrial Amphenol Insertion & Extraction Tool, C 16-3 Series

Crimp Tool and Insertion/Extraction Tools

Tool 1 - 0.14 -0.5mm² & 0.5 - 1.5mm² contacts C16-3 12-way
Tool 2 - 0.14 -0.5mm² contacts for C16-3 14-way and NL series
Tool 3 - 0.5 -1.5mm² contacts for 14-way

Approvals

VDE (3964); UL (E63093); CSA (49932-9)

Amphenol C 16-3 Circular Connectors

All planforms require crimp contacts with the exception of the 5 +PE configuration which is supplied complete with screw termination contacts.Bayonet locking, robust, lightweight plastic connectors suited for machinery, light and sound applications and where power and control are required through one connection. Plug shells accept pin contacts, socket shells accept socket contacts.

Cable and chassis mount inserts may be keyed to prevent incorrect connection between typesCan facilitate cable to cable and cable to chassis connectionAll have a pre-mating earth designSupplied with strain relief and PG cable gland for conduit fixingIP65 to IEC529

Note

Ratchet Crimp Tool see 241-2786, Insert/Extraction Tool 1 see 240-8642 , Insert/Extraction Tool 2 see 240-8658 and Insert/Extraction Tool 3 see 240-8642.

Service Hand Crimping Tool

Removal Tools

Amphenol Circular Connectors C 16-3, C 16-L

Amphenol Circular Connectors C 16-3 High Current Version Flyer
