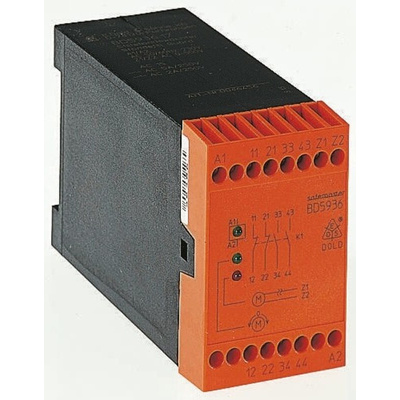

BD5936.17 AC50/60Hz 230V, Dold Standstill Monitoring Relay, 1, 3 Phase, DPDT, DIN Rail, Реле контроля

BD5936.17 - Standstill monitor

Wire breakage detection in the measurement circuit
Positively driven output contacts: 2 NO, 2 NC for 250 Vac
LED displays for motor standstill, wire breakage and operating voltage
Overall width 45 mm

Standstill recognition for 3-phase and single-phase asynchronous motors, e.g. for safety door lock releases on machine tools or for activating parking brakes.
The BD5936.17 measures the induced voltage of the slowing motor at two terminals on the stator winding. No initiator etc. is necessary. Frequency converter-driven motors cannot be monitored with these devices due to the leakage currents from their power semiconductors.

Rotation Sensing

All units have standard panel cut out of 45 x 45mm and SPCO output

Datasheet - BD5936
