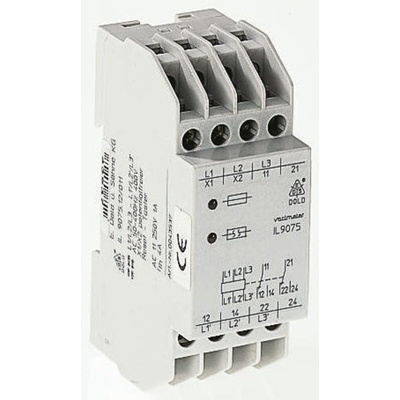

IL9075.12/001 AC50-400Hz 400V, Dold Phase Monitoring Relay With DPDT Contacts, 3 Phase, Реле контроля

Fuse monitor, IL9075/001

Recognises fuse failures in three-phase networks up to 440 V
Failure notification even with loads switched off
Usable for all types and sizes of fuses
Independent of rotational direction
No abnormal behaviour even in asymmetrical networks with harmonics, or with regenerative motors
Shorter response time than motor protection circuit breakers
Internal resistance >1 MΩ
Rest current principle
2 LED displays
2 changeovers
35 mm overall width

The IL9075/001 monitors all three fuses in the three-phase network to produce, for example, an automatic shutoff and switch lock of a three-phase motor if one or more of the phase fuses fails (in accordance with IEG 55, VDE 0435).

Datasheet - IL9075
