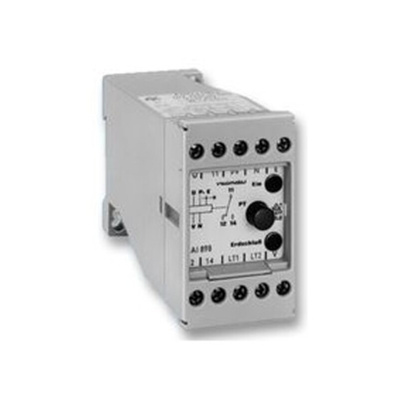

AI898 DC24V 6kOhm UH=AC45-400Hz 230V, Dold Voltage Monitoring Relay With SPDT Contacts, Реле контроля

2409049
Номер производителя: AI898 DC24V 6kOhm UH=AC45-400Hz 230VПроизводитель: Dold
Цена за шт.
103539.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Insulation monitor for direct current networks, AI898

Fixed response time 6 kΩ
LED display for operational readiness and earth fault
1 changeover
Overall width 45 mm

The AI898 insulation monitor displays the insulation resistance of unearthed direct current networks to earth. It does not detect symmetrical earth faults. In practice, these faults are generally insignificant.
The AI898 works on the quiescent current principle, for example when the auxiliary voltage is applied to terminals A1 → A2 the output relay is activated and the "ON" LED indicates that the insulation resistance RAN is not less than the minimum value. If insulation resistance falls below the response value, the output relay drops, the "ON" LED goes out and the second LED for "Earth fault" lights up.
A bridge between terminals LT1 and LT2 (inserted as standard) allows the AI898 to be programmed for memory storage behaviour; remove the bridge to programme hysteresis behaviour. The bridge can be replaced with a delete key with an NC contact. A test key (PT) tests the functional efficiency of the device (as per VDE 0435).

Техническая спецификация
pdfVarimeter Insulation Monitor AI 898 Data Sheet
Время задержки:
0.4s
Высота:
77мм
Диапазон рабочих температур:
-20 → +60°C
Диапазон чувствительности по напряжению:
0.8 → 1.1
Длина:
115мм
Конфигурация контактов:
SPDT
Программы мониторинга:
Напряжение
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-20°C
Размеры:
115 x 45 x 77mm
Ширина:
45мм
