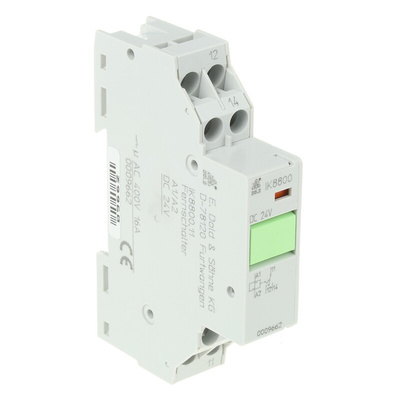

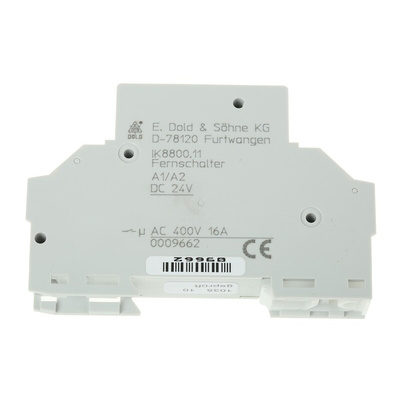

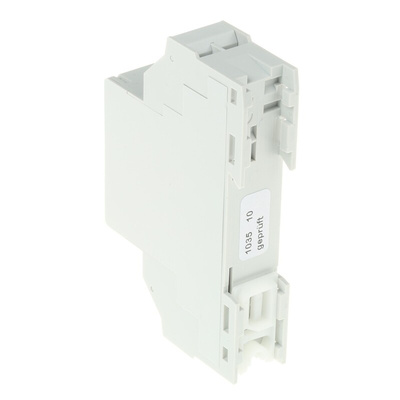

IK8800.11 DC24V, Dold DIN Rail Latching Power Relay, 24V dc Coil, 16A Switching Current, SPDT, Реле

Dold Remote Switch

The Dold remote switch has one changeover contact and switching current rating of 16A. It has an impulse operation that offers low energy consumption. This relay requires a small amount of wiring at installations with serval local pushbuttons. It is possible to actuate the contacts manually by pressing a pushbutton provided on the unit. The contact position is shown by an indicator. The units can be installed in rows next to each other at 7mm separation for continuous operation.

Features and Benefits

Operating position display
Operating temperature ranging between -20°C and 45°C
Optionally contacts with up to a maximum of 4 changeover contacts
Pushbutton for manual actuation of the contacts
SPDT contact configuration
Width is 17.5mm

Applications

Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration

Certifications

IEC 60 664-1
IEC/EN 60 947-5-1
IEC/EN 61 000-4-2
IEC/EN 61 000-4-4
IEC/EN 61 000-4-5
IEC/EN 61 000-4-6
IP20 rated terminals
IP30 rated housing

Datasheet - IK8800
