Lascar EL-USB-ULT-LCD Temperature Data Logger, USB

Lascar Ultra Low Temperature USB Data Logger with Display

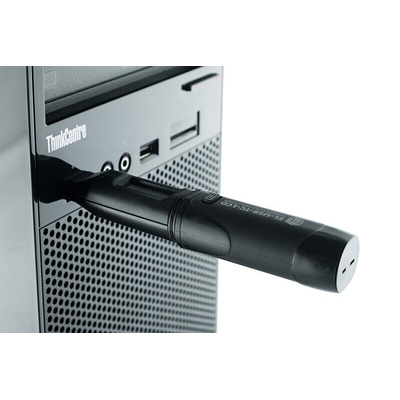

The EL-USB-ULT-LCD is a ultra-low temperature data logger designed for monitoring vaccines in cryogenic dry ice storage. This standalone data logger from Lascar can measure and store over 32,000 temperature readings from its high accuracy thermocouple temperature probe. The display allows users to cycle between the current, minimum and maximum temperature readings. On-board flashing lights alert users to any temperature breaches, right away. Easily set up your logger and view downloaded data in the EasyLog software, simply plug your device into your PC's USB port. From here, data can be graphed, printed and exported to other applications for detailed analysis.

Features and benefits

Measurement range -100 to +100°C

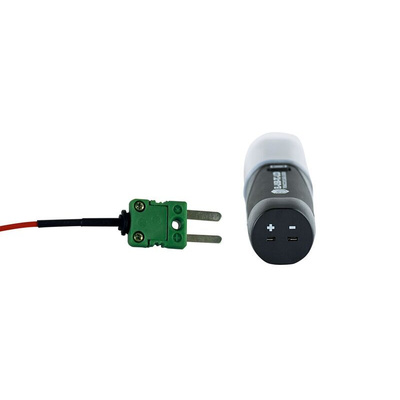

T-type probe on 1m cable
Stores over 32,000 readings
High contrast LCD, with four digit temperature display function
Logging rates between 1 second and 12 hours
Immediate, delayed and push-to-start logging
User-programmable alarm thresholds
Status indication via red and green LED's
EasyLog software available as a free download

Typical Applications

Ultra Low Temperature Vaccine Monitoring
Vaccine Storage
Pharmaceutical Cold Chain

Supplied with:

Battery
Thermocouple Probe
Mounting Bracket

What other Data Loggers are available in this Lascar range?

EL-USB-ULT
EL-21CFR-ULT
EL-WiFi-ULT

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Quick Start Guide

Datasheet - EL-USB-ULT-LCD
