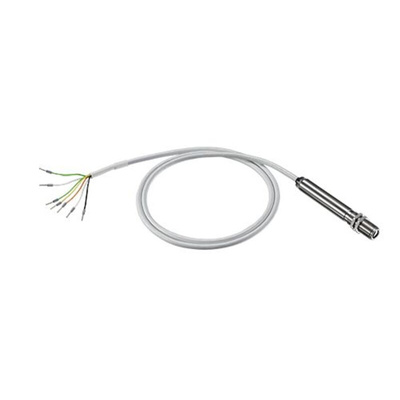

Optris CATCSLT15SFCB3K Temperature Sensor USB Infrared Temperature Sensor, 3m Cable, -50°C to +1030°C

Mini Sensor Kit

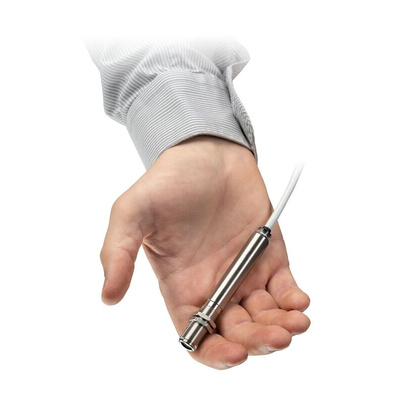

The infrared pyrometer optris CS LT is perfectly suited for temperature measurement in small and narrow environments. The robust measuring heads have been developed for use in temperature ranges from -50°C to 1,030°C.

The inexpensive IR pyrometers are perfectly suited for machine integration. The smart LED in the back of the sensor gives Feeback, e.g. alarm indication, automatic aiming support, self diagnostic, temperature indication (via temperature code).

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyse infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Temperature Range -50 to 1030°C
Optical Resolution 15:1
Analogue output 0-10/0-1V or Type K with Alarm
Smart LED indication
Free (Android/Windows) software for download

Scope of Delivery

CS pyrometer

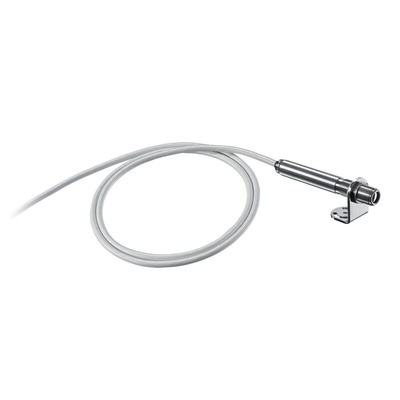

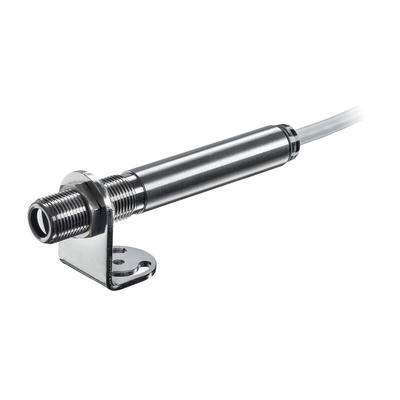

Mounting bracket and two nuts
3m connection cable
IR App connector
Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Quick start guide

Accessories:

CATACCTMG; CATACCTAPL; CATACCTCF

Datasheet - CATCSLT15SFCB3K
