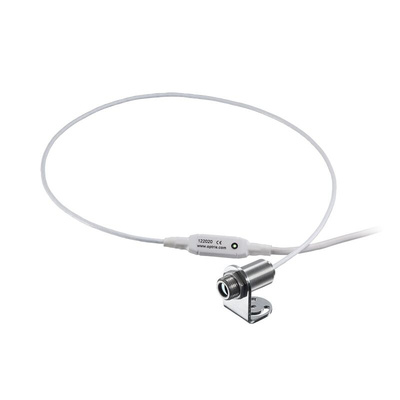

Optris CATCSMALT15SF0505K Thermometer USB Infrared Temperature Sensor, 0.5m Cable, -50°C to +1030°C

Micro Sensor Kit - mA

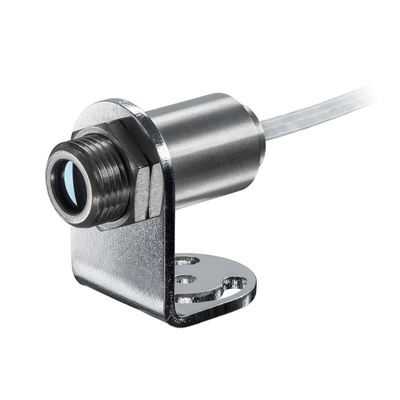

The CSMA is equipped with an innovative, miniaturized stainless steel measuring head, optimally suited for installation in limited spaces. Its small size make the mechanic integration of the measuring head.

The intelligent LED display works optionally as alarm signal, target support, self-diagnosis or temperature-code display. The placement of electronic components within the cable allows for a high temperature resistance of the measuring head.

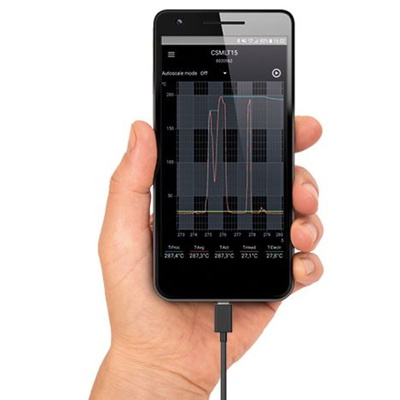

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyse infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Smallest available sensor head
Temperature Range -50 to 1030°C
Optical Resolution 15:1 and response time 14mS
Analogue output 4-20mA with Alarm
Electronics with LED indication in cable
Free (Android/Windows) software for download

Scope of Delivery

CSmicro pyrometer
Mounting bracket and two nuts
1m connection cable

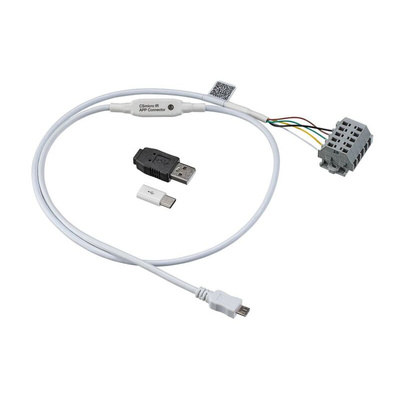

IR App connector
Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Quick start guide

Accessories:

CATACCTMG; CATACCTAPL

Datasheet - CATCSMALT15SF0505K
