Optris CATCT3MHSFK Thermometer USB Infrared Temperature Sensor, 3m Cable, +50°C to +1800°C

Compact Sensor - metal fast

The infrared thermometer CTL Metal provides exact temperature measurement with a spot size ratio of 85:1 over a tempearture range from 100 °C to 600 °C. It offers a robust and premium-quality stainless steel measuring head .

Its special spectral range of 2.3 μm makes it the ideal IR pyrometer for temperature measurement of metallic surfaces and enables measurements through glass.

Due to its extremely short response time of 1 ms, the highly efficient IR thermometer allows the surveillance of fast processes and measures reliably and precisely.

The electronics box of the measuring device allows a flexible terminal device through selectable analog outputs as well as various optional digital interfaces.

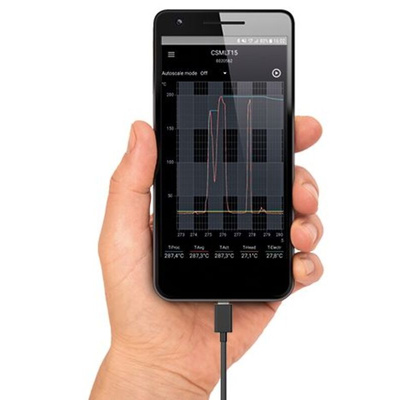

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Temperature Range 100-600°C and Optical Resolution 33:1
Withstand 85°C operating temperature
1mS response time

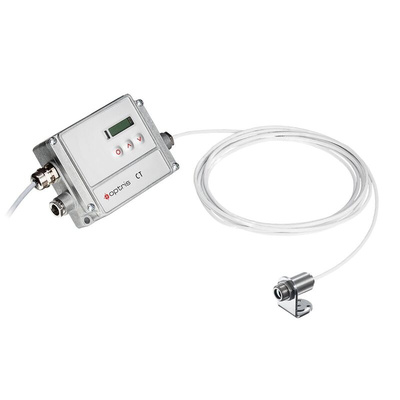

Separate, configurable electronic box with LCD display and programming keys
Multiple alternatives for analogue or digital output
Free (Android/Windows) software for download
Optional digital interface (RS485, Relay Profibus)

Scope of Delivery

CT pyrometer
Mounting bracket and nut
3m head cable

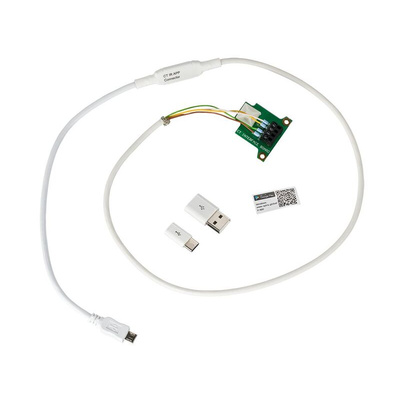

IR App connector
Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Operators manual

Accessories:

CATACCTAPL Air purge collar, CATACCTMG Mounting Fork
Interface: CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces)

Datasheet - CATCT3MHSFK
