Optris CATCTL3MH1SFK Two Point Laser USB Infrared Temperature Sensor, 3m Cable, +50°C to +1800°C

Laser Sighting Sensor Kit - Metal

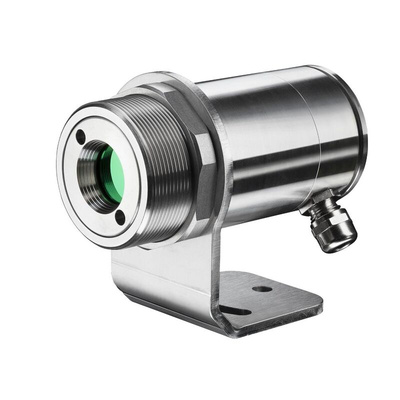

The infrared thermometer CTL Metal provides exact temperature measurement with a spot size ratio of 300:1 over a tempearture range from 150 °C to 1000 °C. It offers a robust and premium-quality stainless steel measuring head with an innovative double laser sighting for an exact measuring field marking in every distance.

Its special spectral range of 2.3 μm makes it the ideal IR pyrometer for temperature measurement of metallic surfaces and enables measurements through glass.

Due to its extremely short response time of 1 ms, the highly efficient IR thermometer allows the surveillance of fast processes and measures reliably and precisely.

The electronics box of the measuring device allows a flexible terminal device through selectable analog outputs as well as various optional digital interfaces.

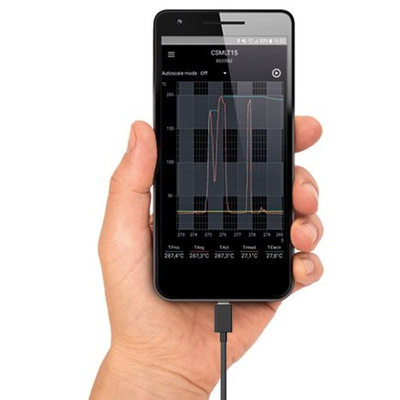

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyse infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Integrated Laser to indicate position an size of measurement spot
Temperature Range 150 to 1000 °C and Optical Resolution 300:1
Response Time 1ms
Separate, configurable electronic box with LCD display and programming keys
Multiple alternatives for analogue or digital output
Free (Android/Windows) software for download
Optional digital interface (RS485, Relay Profibus)

Scope of Delivery

CTlaser pyrometer
Mounting bracket and nut
3m head cable

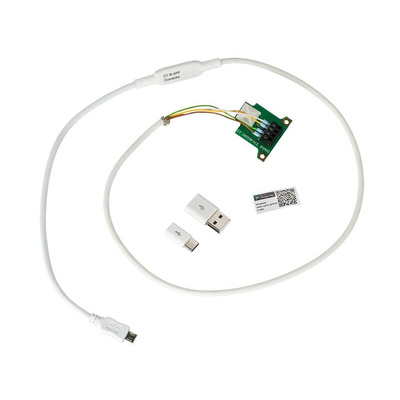

Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Operators manual

Accessories:

CATACCTLAP Air purge collar
Interface: CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces)

Datasheet - CATCTL3MH1SFK
