Optris CATCTLLTSFK Two Point Laser USB Infrared Temperature Sensor, 3m Cable, -50°C to +975°C

Laser Sighting Sensor Kit

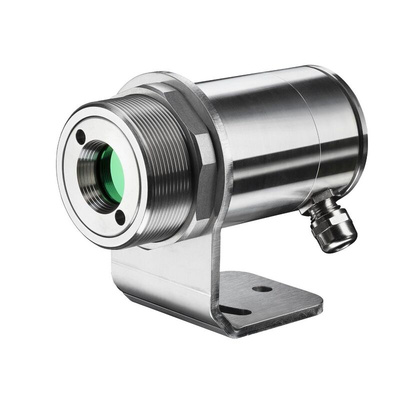

The infrared thermometer CTL provides exact temperature measurement with a spot size ratio of 75:1 over a tempearture range from -50 °C to 975 °C. It offers a robust and premium-quality stainless steel measuring head with an innovative double laser sighting for an exact measuring field marking in every distance.

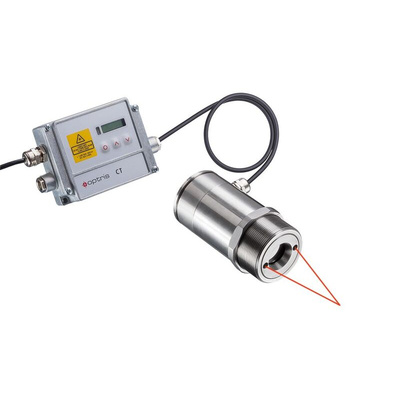

The electronics box of the measuring device allows a flexible terminal device through selectable analog outputs as well as various optional digital interfaces.

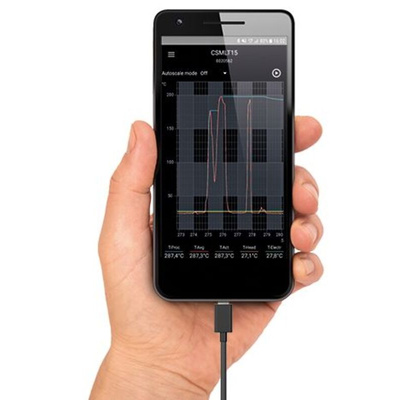

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Integrated Laser to indicate position an size of measurement spot
Temperature Range -50 to 975°C and Optical Resolution 75:1
Separate, configurable electronic box with LCD display and programming keys
Multiple alternatives for analogue or digital output
Free (Android/Windows) software for download
Optional digital interface (RS485, Relay Profibus)

Scope of Delivery

CT laser pyrometer
Mounting bracket and nut
3m head cable

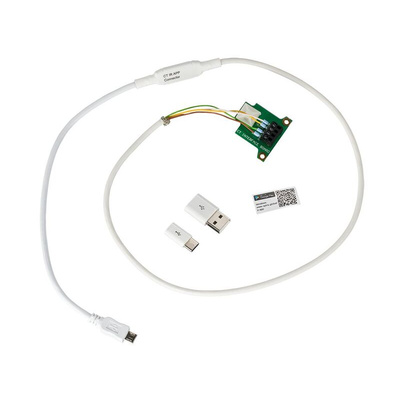

Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Operators manual

Accessories:

CATACCTLAP Air purge collar
Interface: CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces)

Datasheet - CATCTLLTSFK
