Optris CATCTLT15CB3K Temperature Sensor USB Infrared Temperature Sensor, 3m Cable, -50°C to +975°C

Compact sensor Kit

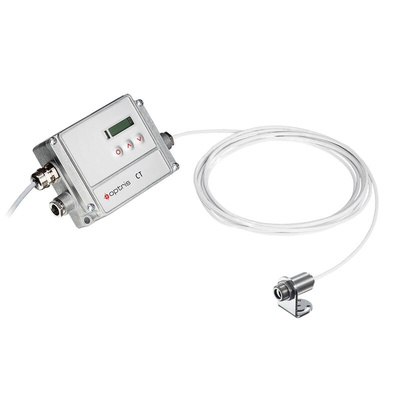

The pyrometer CT15 is equipped with one of the world’s smallest infrared sensors with a high optic resolution of 15:1.

The miniaturised stainless steel measuring head, optimally suited for installation in limited spaces.

The electronics box provides a flexible terminal device through selectable analog outputs as well as various optional digital interfaces. Additionaly the set up can be done via 3 buttons and a display right on the box.

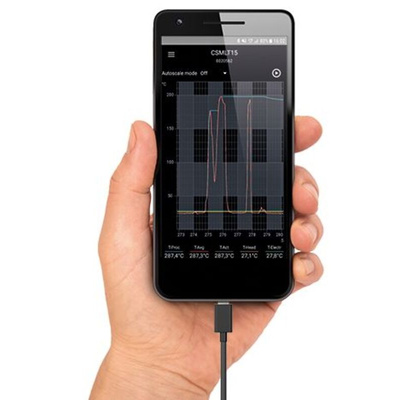

The pyrometer can be run and set up via the IR mobile App (Android). The App enables to monitor and analyze infrared temperature measurements on a connected smartphone or tablet. A Windows Software is included as usual for all Optris products.

Temperature Range -50 to 600°C and Optical Resolution 15:1
Micro Sensor Head withstand 180°C operating temperature
Separate, configurable electronic box with LCD display and programming keys
Multiple alternatives for analogue or digital output
Free (Android/Widows) software for download
Optional digital interface (RS485, Relay Profibus)

Scope of Delivery

CT pyrometer
Mounting bracket and nut
3m head cable

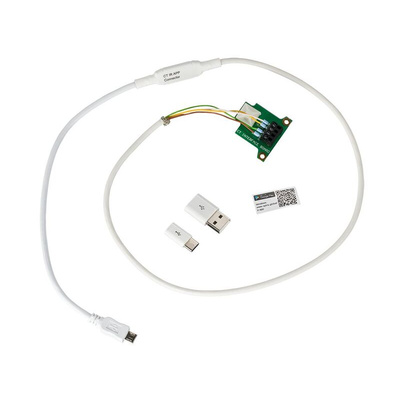

IR App connector
Micro-USB cable and adapters USB-C / USB-A
Software package Compact Connect
Operators manual

Accessories:

CATACCTLAP Air purge collar, CATACCTMG Mounting Fork, CATACCTCF Close Focus Lens.
Interface: CATACCTMBRTUB (Modbus RTU board), CATACCPFBDPK (Profibus-DPv1board),CATACCTRS232K (RS232 board), CATACCTRS485USBK (RS485/422-USB cable and block),CATACCTRS485B (RS485 board), CATACCTRI (Relay interfaces)

Datasheet - CATCTLT15CB3K
