CATP202M, Optris P20 2M Digital Thermometer, +385°C Min, ±2 °C Accuracy, °C and °F Measurements

Portable Thermometer - Metal

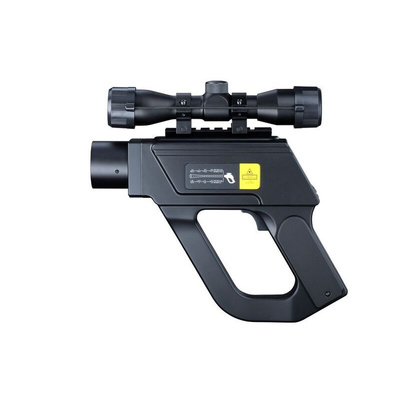

The Optris P20 is a portable pyrometer for industrial high temperature measurements from 385 °C to 1,600 °C.

A double point laser to mark the position as well as the size of the measurment point. Additionally, a scope makes it easy to hit the target even on glowing objects.
An internal data storage saves up to 2,000 measured values. Settings like emissivity changes can be done via integrated menu or via free of charge software.

The laser thermometer is equipped with a USB port for evaluation and analysis of the measurement data on the computer. The included evaluation and reporting software optris Connect additionally offers an oscilloscope function for 20 measurements per second.

The P20 comes with an LCD including colour alarm. This alarm visualize an under-run or over-run of a defined temperature threshold with varying display colours.

The P20 consists of an USB interface. Temperature graduation can be displayed and recorded at a PC in connection with the optris Connect software.

Rough and dirty condition design
Temperature Range 385-1600 °C
Optical resolution 300:1
Laser and visual sighting
Coloured Display
Alarm High/Low
Changable emissivity

Scope of Delivery

P20 pyrometer
USB interface cable
Battery charger
OptrisConnect report software
Operators manual

Datasheet - CATP202M
