Optris CATXI40LTF13T090C USB Thermal Imaging Camera Kit, -20 → +900 °C, 382 x 288pixel Detector Resolution

Compact IR camera Kit

The Xi400 is a fusion of a rugged, compact pyrometer and a modern IR camera. Thanks to analog and digital outputs as well as the option to process definable measuring areas using an external process interface, the Xi camera is perfectly suited for autimisation process monitoring.
The silicon bolometer offers a resolution of 382x288 px. For easy and precice sighting a mot focus is integrated and can be adjusted easily via the free of charge software PIX connect or even by your Android smartphone and the free Android App IR mobile.

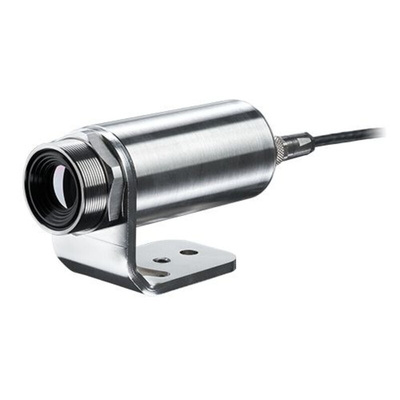

Small sized rugged IR camera with motor focus
Temperature Range -20 to 900 °C and Frame Rate up to 80 Hz
Direct In- and Output (0-10V) and digital Input (max. 24 V)

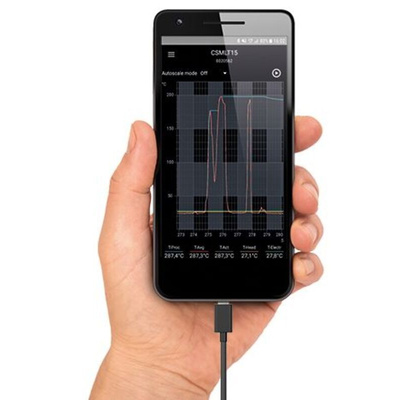

Free (Android/Windows) software for download
Radiometric recording

Scope of Delivery

Xi 400 camera
1m USB cable
process interface (Xi 400 - 1m cable)

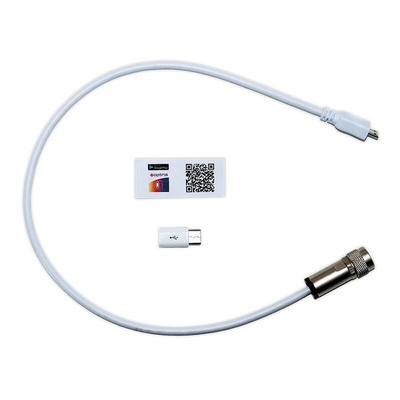

IR App Connector Xi 400 (USB-C)
Mounting bracket and nut
Software package PIX Connect
Quick start guide

Accessories:

CATACPIUSB5PCB5

Datasheet - CATXI40LTF13T090C
