09-0A72.3142, EAO Hardwired Keypad Design In Kit Keypad Accessory Kit for HMI

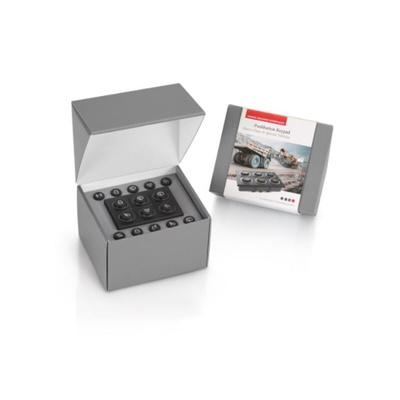

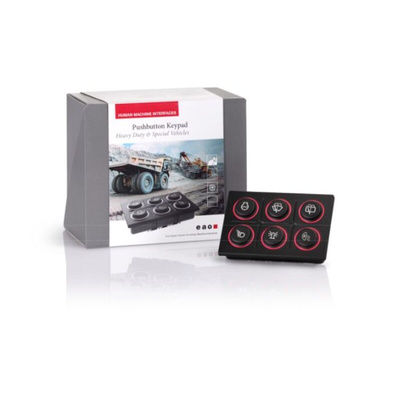

The EAO Series 09 Rugged Keypads offer high reliability. The robust, modular design with sealing levels of up to IP6K7 and the ability to customise and individually select and arrange the keypad legends make these high-quality devices ideally suited for harsh environments. EAO’s Series 09 Design in Kits offer the opportunity to test the functions and installation option of the rugged keypads during the design-in phase. The kit contains a Hardwired 6 Key Rugged keypad, with white LED symbol backlighting along with Red LED Halo Ring Illumination. The rest of the kit contents are detailed below:

6 x Retaining Clip for 2mm Panel

12 x Rubber Washer 4,8x15x1

4 x Washer DIN9021 stainless A2

4 x Nuts

1 x Coupler

10 x Symbol Insert

1 x Power Supply

1 x Plug Adapter

1 x Adapter Cable Keypad

1 x Mounting Frame Aluminium 2mm

1 x Insert Tool
