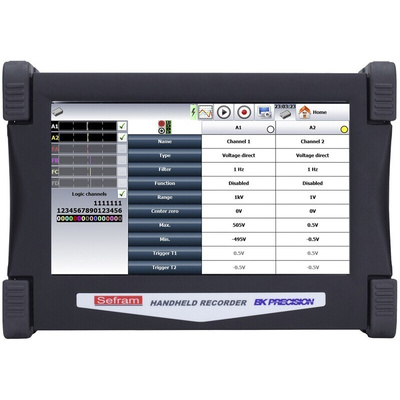

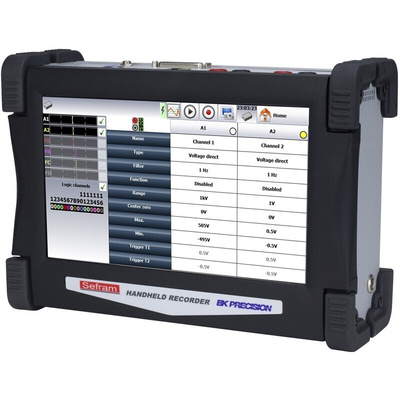

DAS30PZ, Sefram Data Acquisition System, 2 Channel(s), Ethernet, USB, 1Msps, 14 bits

The Sefram data acquisition solution DAS30PZ is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 2 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs (in option), more than 9 hours autonomy, a 32GB memory, the DAS30 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase. The remote control and the download of memorized data is very convenient using one of the interfaces provided: Ethernet, USB, Wi-Fi (option). To view and manage your data, we propose several license-free software that can be downloaded from our website and that will match your needs. Available with printer option.

2 analogue channels
Universal input
DC, AC+DC RMS voltage measurement
Frequency, counter
Temperature: thermocouple, Pt100/Pt1000 (option)
Power analysis function
16 logical channels
14-bit resolution
10" TFT panoramic LCD touch screen
1 Ms/s sampling rate
100 kHz bandwidth
32 GB internal hard disk
32 M word memory

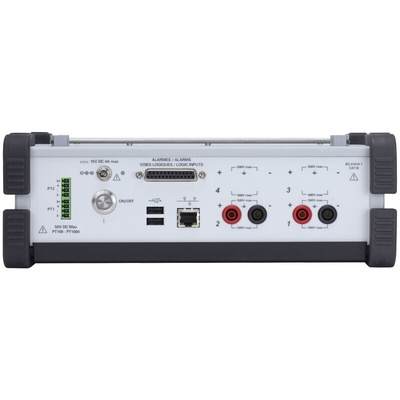

Interfaces : 2 x USB, Ethernet,
Lithium-ion battery
Autonomy: up to 9,5 hours.
IEC 1010 CAT III 600V
110mm Thermal printer module (option)

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
