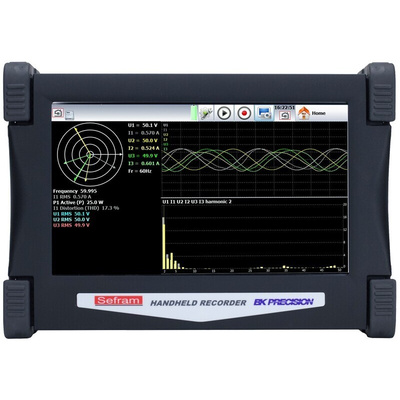

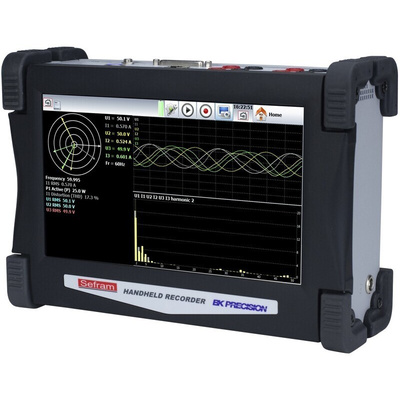

DAS50P, Sefram Data Acquisition System, 4 Channel(s), Ethernet, USB, 1Msps, 14 bits

The Sefram data acquisition solution DAS50P is part of the family of standalone, portable, battery operated instruments dedicated to high-speed recording. With 4 isolated channels, 16 logical inputs, 2 Pt100/Pt1000 inputs (in option), more than 9 hours autonomy, a 32GB memory, the DAS50 is the ideal tool for R&D, diagnostic and maintenance. With a special function of Power Analysis, you can record all your parameters on a Single-Phase and Three-Phase network. The remote control and the download of memorized data is very convenient using one of the interfaces provided: Ethernet, USB, Wi-Fi (option). To view and manage your data, we propose several license-free software that can be downloaded from our website and that will match your needs. Available with printer option.

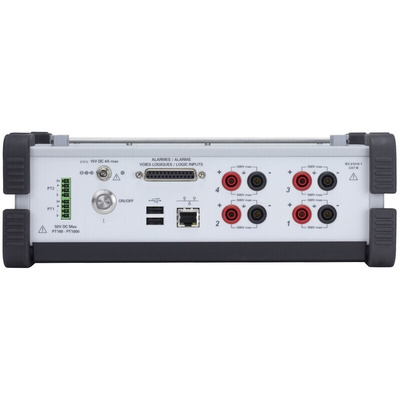

4 analogue channels
Universal input (1mV to 425V RMS)
DC, AC+DC RMS voltage measurement
Frequency, Thermocouple
Power analysis function
16 logical channels
14-bit resolution
10" TFT LCD screen
1 Mega sample/s sampling rate
100 kHz bandwidth
32 GB internal hard disk
32 M word memory
Interface : USB and Ethernet
Lithium-ion battery: 10h continuous operation
High safety level for industrial application: CEI 1010 CAT III 600V
Optional Printer : 110 mm paper width (factory option)

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4

Datasheet - DAS50P

UN38.3 Lithium Battery Test Summary
