D2D12, Sensata / Crydom 1-DC Series Solid State Relay, 12 A Load, Surface Mount, 200 V Load, 32 V Control, Реле

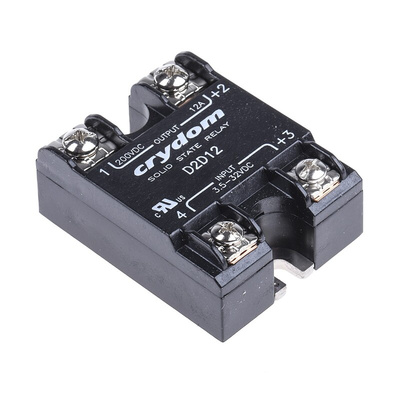

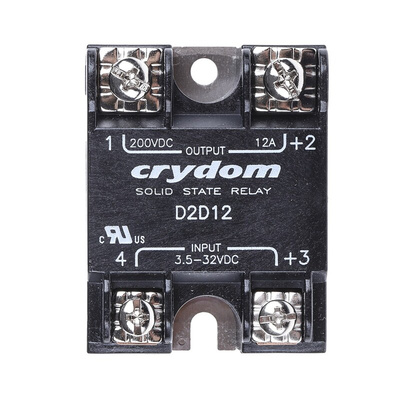

Sensata | Crydom Solid-State Relay, 3.5 to 32V DC Control Voltage Range, MOSFET Output - 1-DC Series - D2D12

Keep close control over your electrical equipment with this solid-state relay from Sensata | Crydom. It has no moving parts, so there's minimal wear and tear, helping to ensure a long service life. This component has a fast turn-on time of 100μs for lightning-fast switching. A control voltage range of 3.5 to 32V DC means it's just the thing for low-power applications. The unit's screw terminals clamp your wires in place, and the anti-rotation barriers prevent accidental disconnections. You can use this dependable device for motors and pumps.

Features & Benefits

• Pre-drilled mounting holes make it a cinch to screw in place
• Fixes to any flat surface for flexible installation
• I/O capacitance of 8pF for high-integrity signal transmission

Can I use this SSR in extreme temperatures?

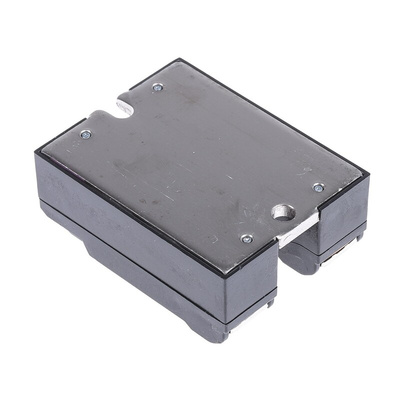

Yes, this SSR has a wide operating temperature range between -20°C and +80°C for use in harsh environments. To maximise the device's lifespan in challenging conditions, back the relay with a thermal pad (743-4863) to dissipate heat efficiently.

Approvals

UL; CE; ISO

DC Switching

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
