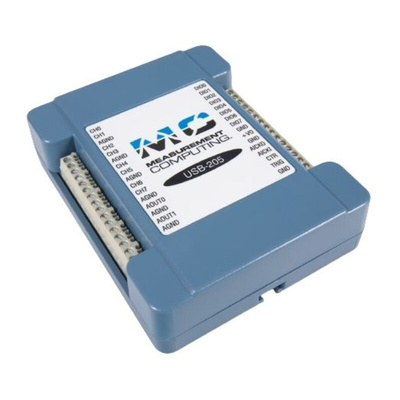

6069-410-009, Digilent MCC USB-205 Data Acquisition, 8 Single Ended Channel(s), USB, 500ksps, 12 bit

Digilents MCC USB-205 12-bit resolution multifunction DAQ device is designed for data acquisition applications. Featuring eight single ended analog voltage inputs, two analog outputs and has data acquisition rates that can sample up to 500 kS/s. The USB DAQ also comes complete with eight digital I/O channels and one counter input.

Digilents MCC USB-205 USB DAQ is supported by DAQami software, an out of the box application for viewing data, signal generation and data logging. The data can be viewed in real-time or post-acquisition. The drivers included are for applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

Features
The analog input range is fixed at ±10 V
Analog output 0 to 5 V
32-bit event counter input
External pacer I/O
No external power required – USB
USB cable and MCC DAQ software supplied

Datasheet - 6069-410-009

MCC USB 205 Datasheet
