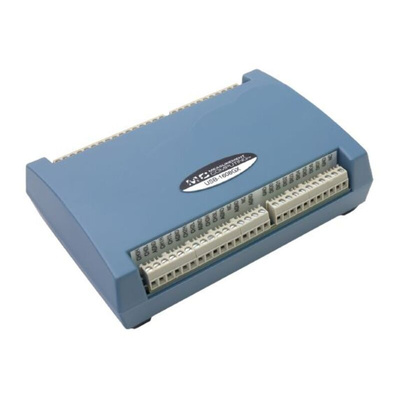

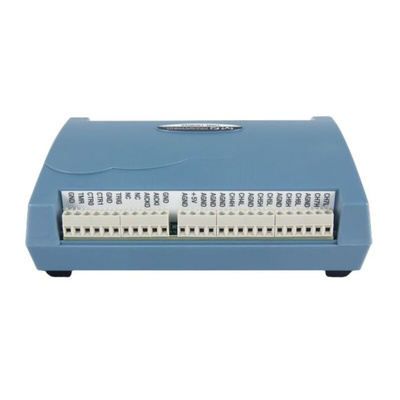

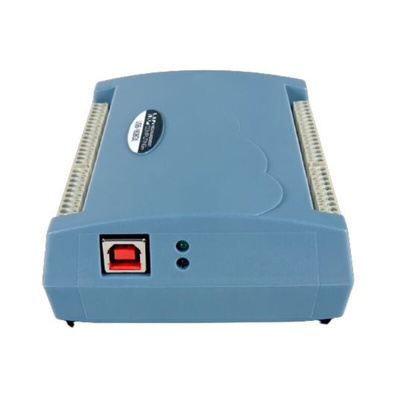

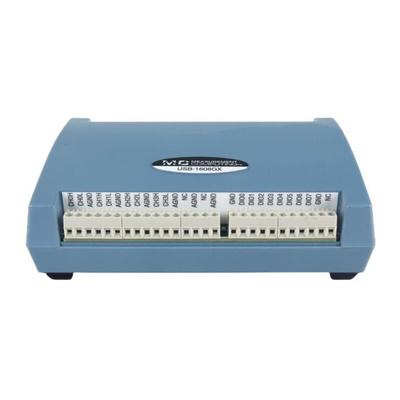

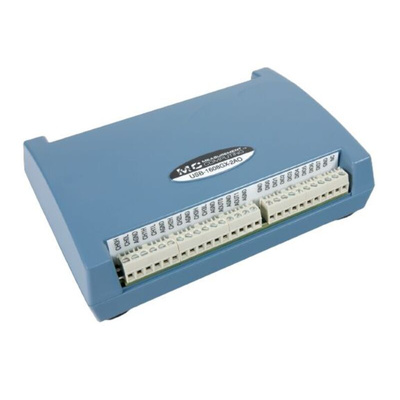

6069-410-011, Digilent MCC USB-1608GX-2AO Data Acquisition, 16 SE/8 DIFF Channel(s), USB, 500ksps, 16 bit

Digilents MCC USB-1608GX-2AO high-speed multifunction DAQ provides 16 single ended analog or eight differential inputs and two analog outputs. Data acquisition rates up to 500 kS/ along with eight digital I/O channels, two 32-bit counter inputs and one timer output.

The MCC USB-1608GX-2AO DAQ software support includes free DAQami software with a ready to run application. The data acquisition software lets you carry out data logging, view data and generate signals in real time data or post-acquisition.. Drivers are included for software applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

Features
Sample rate: Can be updated at a rate of 250 kS/s per channel or one output can be updated at a rate of 500 kS/s
PWM Timer output
2 x 32-bit Event counter
Analog Input range: ±10 V, ±5 V, ±2 V, and ±1 V
2 x Analog output: Fixed ±10 V
No external power required, USB cable
Product Compliance: HTC: 8471.80.9000, ECCN: EAR99
Out of the Box Software: DAQami
Supported Operating Systems: Windows 11/10/8/7/Vista, 32-bit or 64-bit

Datasheet - 6069-410-011
