6069-410-012, Digilent MCC USB-231 Data Acquisition, 8 SE/4 DIFF Channel(s), USB, 100ksps, 16 bit

Digilent multifunction MCC USB-231 DAQ includes 16-bit resolution channels, eight single ended or four differential analog inputs. Alongside two 16-bit analog outputs, eight digital I/O and one 32-bit edge counter. The data acquisition sample rates are aggregate and the MCC USB 231 has a rate up to 50 kS/s on a single channel. See the datasheet when looking for maximum sample rates on one to eight channels.

Digilents MCC USB-231 DAQ is supported by DAQami software, an out of the box application for viewing data, signal generation and data logging. The data can be viewed in real-time or post-acquisition. The drivers included are for applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

Fixed analog input/ output range: ±10 V
No external power required

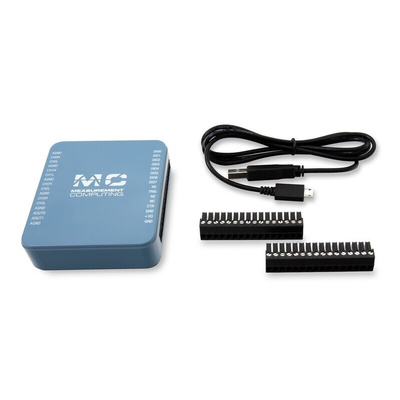

USB cable (micro-USB type B)
Two screw terminal connector plugs
Dimensions with screw terminal connector plugs: 93.2 x 86.2 x 23.6 mm
Product Compliance: HTC: 8471.80.9000, ECCN: EAR99
Supported Operating Systems: Windows 11/10/8/7/Vista, 32-bit or 64-bit
