6069-410-015, Digilent MCC USB-1608FS-Plus Data Acquisition, 8 SE simultaneous analog inputs Channel(s), USB, 100ksps, 16 bit

Digilent’s MCC USB-1608FS-Plus DAQ delivers simultaneous sampling, offering up to 100 kS/s sample rate for any one channel and 400 kS/s aggregate for multiple channels. The features of the MCC USB-1608FS-Plus USB data acquisition device include simultaneous sampling of eight analog inputs, eight digital I/O lines, 16-bit resolution and a 32-bit event counter. As well as other elements such as external digital triggering, and a bidirectional clock.

The simultaneous USB high speed DAQ has software selectable analog input ranges, each comes with a dedicated 16-bit A/D converter giving true simultaneous sampling of all eight inputs. Digilents MCC USB-1608FS-Plus data acquisition has ready to run software applications and the DAQami software has an easy to use drag and drop interface allowing you to view, generate signals and log data. The DAQami software can configure logging analog, digital, and counter channels as well as real-time data or post-acquisition. All your logged data can be exported for use in Excel® or MATLAB®. The drivers are freely available for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

Features
Analog Input range: ±10 V, ±5 V, ±2 V, and ±1 V
Sample rates: per channel 100 kS/s, up to 400 kS/s aggregate for multiple channels
Maximum sampling rate: 800 kS/s aggregate for all channels
32-bit counter input

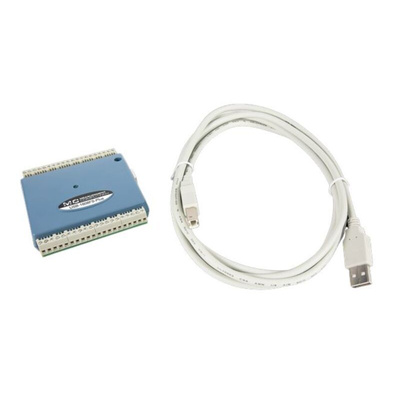

USB cable (3m)
No external power required
Product Compliance: HTC: 8471.80.9000, ECCN: EAR99
Out of the Box Software: DAQami
Supported Operating Systems: Windows 11/10/8/7/Vista, 32-bit or 64-bit

Datasheet - 6069-410-015

MCC USB 1608FS Plus Datasheet
