6069-410-016, Digilent MCC E-1608 Data Acquisition, 8 SE/4 DIFF Channel(s), Ethernet, 250ksps, 16 bit

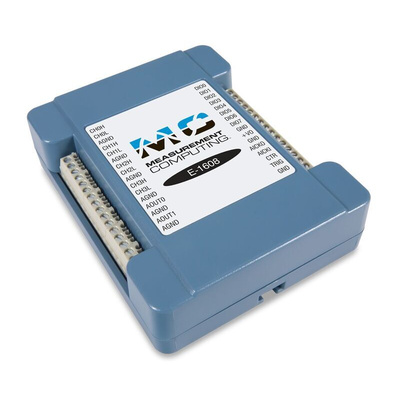

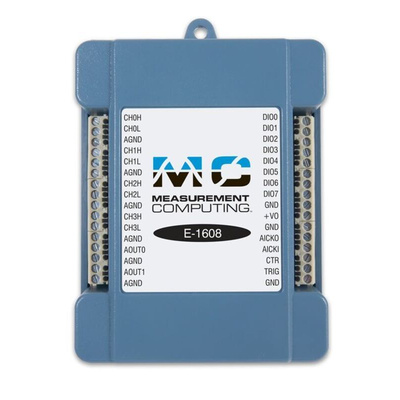

The Digilent MCC E-1608 16-Bit multifunction ethernet DAQ delivers real time data transfers. The data acquisition system is easy to use and integrates with free software support for out of the box data logging. The MCC E-1608 DAQ offers eight single ended analog or four differential inputs, as well as two 16-bit analog outputs. Plus eight digital I/O, and one 32-bit counter input.

Digilents MCC E-1608 DAQ (Measurement Computing) comes with ready to run free Data acquisition and the DAQami software has a drag and drop interface than can view, generate signals and log data. The DAQami software can configure logging analog, digital, and counter channels as well as real-time data or post-acquisition. All your logged data can be exported for use in Excel® or MATLAB®. The drivers are freely available for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

Features
Remote data acquisition
±10 V, ±5 V, ±2 V, ±1 V input ranges

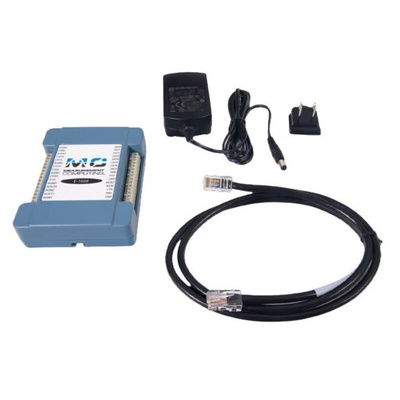

Includes 1m Ethernet Cable
Power Supply: 5 Vdc Output - Field Changeable AC Input Plug (USA style is included)

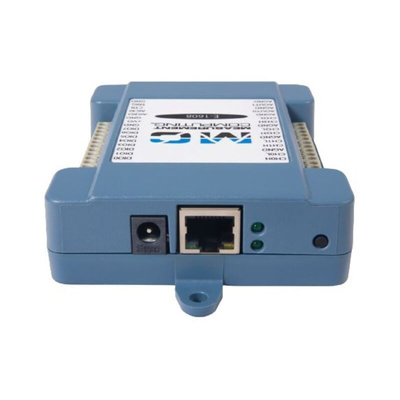

Network Ethernet connection: Ethernet type; 100 Base-TX, 10 Base-T
Network Interface protocols are TCP/IP and UDP
For use with the Internet of things (IoT) technologies and products
Product Compliance: HTC: 8473.30.1180, ECCN: 3A992.a

Datasheet - 6069-410-016

MCC E-1608 DAQ Datasheet
