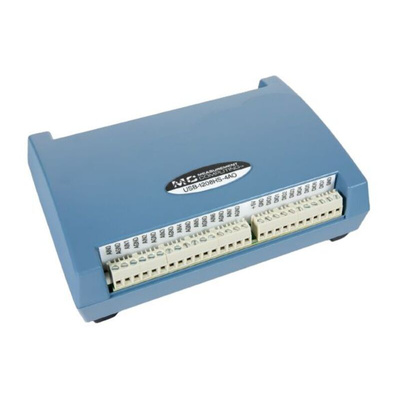

6069-410-017, Digilent MCC USB-1208HS-4AO Data Acquisition, 8 SE/ 4 DIFF Channel(s), USB, 1ksps, 13 bit

The Digilent USB-1208HS-4AO 13-Bit resolution high speed USB DAQ delivers real time data transfers. The data acquisition system is easy to use and integrates with free software support for out of the box data logging. The MCC USB-1208HS-4AO USB bus powered DAQ offers eight single ended analog or four differential inputs, as well as four 12-bit analog outputs. In addition to, sixteen digital I/O, two 32-bit counter inputs and one timer output.

Digilents MCC USB-1208HS-4AO (Measurement Computing Corporation) DAQ has ready to run applications software and the DAQami software has a drag and drop interface than can view, generate signals and log data. The DAQami software can configure logging analog, digital, and counter channels as well as real-time data or post-acquisition. All your logged data can be exported for use in Excel® or MATLAB®. The drivers are freely available for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, Linux®, and Python™.

Features:
Analog Input range: ±5 V to ±20 V in differential mode
Analog Input range: ±2.5 V to ±10 V, and 0 V to 10 V in single ended mode
Sample rates up to 1 MS/s
32-bit PWM Timer output

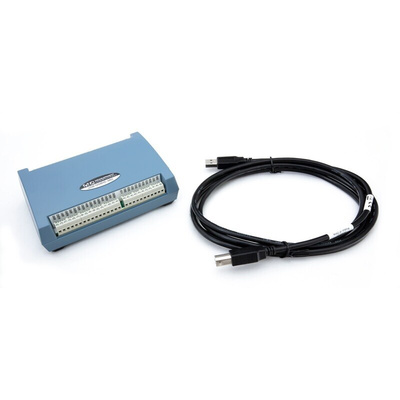

USB cable
Product Compliance: HTC: 8471.80.9000, ECCN: 3A992.a
Out of the Box Software: DAQami - Included
Supported Operating Systems: Windows® 11/10/8/7/Vista®, 32-bit or 64-bit

Datasheet - 6069-410-017
