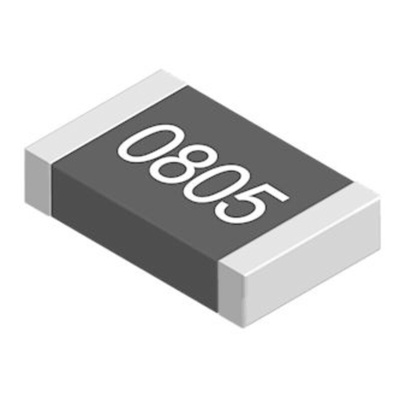

RS PRO 300mΩ, 0805 (2012M) Thin Film SMD Resistor ±0.5% 0.125W

RS PRO Thin Film SMD Resistors – 0805 (2012M)

RS PRO is proud to introduce the 0805 thin film current sensing chip resistors. These surface mount devices are designed to meet the power rating and tolerances required from a precision-engineered SMD resistor. During construction, the process is carefully monitored to ensure the conductive layer and resistance values are accurate which is critical for PCB components. All models are highly reliable and of extremely high quality.

Features and Benefits

• 0805 SMD


• Thin film current sensing chip resistors


• High purity alumina substrate for high power dissipation


• Power rating 0.125 W


• Tight tolerance down to ±0.5%


• Resistance value from 220 mΩ, 300 mΩ, 500 mΩ or 1Ω

Applications

• Power Management Applications


• Switching Power Supply


• Over Current Protection in Audio Applications


• Voltage Regulation Module (VRM)


• DC-DC Converter, Battery Pack, Charger, Adaptor


• Automotive Engine Control


• Disk Driver


• Portable Devices (PDA, Cell Phone)

Why would you choose RS PRO?

RS PRO offers a comprehensive range of surface mount resistors available for specific technology configurations designed to suit your application. Browse our content using the improved filter system to reach your ideal solution.

Also available for purchase in a pack size of 10000. Please see RS 241-4911
