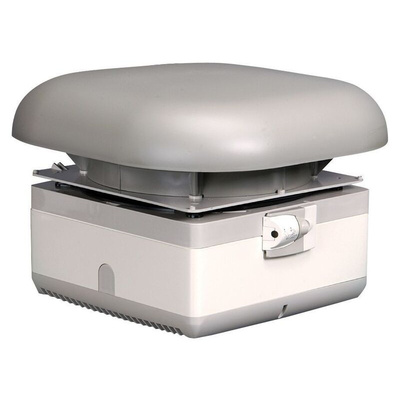

Vent-Axia TX7RF T-Series Square Extractor Fan, 305 m³/h, 395 m³/h, 485 m³/h, 37dB(A), Standard Thermal Overload

The Vent-Axia T-Series roof model extractor fan with a low profile cowl is suitable for installation in horizontal, angled maximum pitch 30 degree and vertical glass and for fixing plates in roofs. It features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. The Ecotronic controller gives even greater running economy with its minimum speed setting and ’E’ mode.

Patented electronic shutter system ensures quiet, trouble free operation
Easy fit connector top socket, standard on all models
T-Series controllers and sensors save energy by only switching on the units when you want either manually or automatically
Supplied with an automatic louvre shutter which operates on both intake and extract and at any angle of mounting
Operation in ambient temperatures from -40 °C to +50 °C
Fitted with standard thermal overload protection
Supply voltage 220-240V/1/50 Hz

Datasheet - TX7RF

Instruction sheet - TX7RF

Schematics-TX7RF
