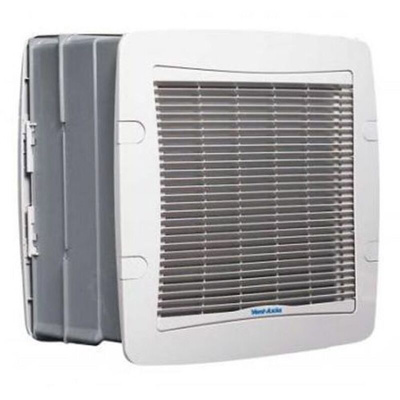

Vent-Axia TX7WL T-Series Square Wall Mounted Extractor Fan, 335 m³/h, 435 m³/h, 530 m³/h, 39dB(A), Standard Thermal

The Vent-Axia T-Series wall model extractor fan is a range of high performance extract/intake fans designed to fit through most wall thicknesses using telescopic liners supplied. It also features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. The controllers may be used with this model to obtain a choice of speeds, reversible airflow direction and automatic sensor operation. The Ecotronic controller gives even greater running economy with its minimum speed setting and ’E’ mode.

Patented electronic shutter system ensures quiet, trouble free operation
Easy fit connector top socket, standard on all models
Designed to fit into most double brick walls using the telescopic liners
Supplied with an automatic louvre shutter which operates on both intake and extract and at any angle of mounting
Operation in ambient temperatures from -40 °C to +50 °C
Fitted with standard thermal overload protection
Supply voltage 220-240V/1/50 Hz
