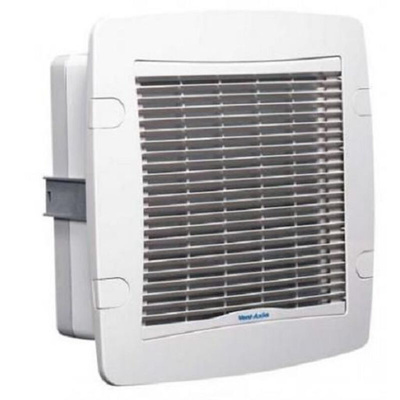

Vent-Axia TX12PL T-Series Rectangular Ceiling Mounted, Panel Mount Extractor Fan, 1270 m³/h, 1640 m³/h, 1885 m³/h,

The Vent-Axia T-Series panel/ceiling model extractor fan is suitable for mounting at any angle in internal partitions, ceilings, ducts and, with louvre grilles, through external walls. When installed only the louvre grille is visible. The range features a unique speed control pack which enables high, medium or low speed to be pre-set to suit a specific room size or required duty. The Ecotronic controller gives even greater running economy with its minimum speed setting on ’E’ mode and infinitely variable speed control.

Patented electronic shutter system ensures quiet, trouble-free operation
Easy fit connector top socket, standard on all model
Supplied with an automatic louvre shutter which operates on both intake and extract and at any angle of mounting
Suitable for operation in ambient temperatures from -40 °C to +50 °C
Fitted with standard thermal overload protection
Supply voltage 220-240V/1/50Hz
Colour soft tone grey

Datasheet - TX12PL

Instruction sheet - TX12PL

Schematics-TX12PL
