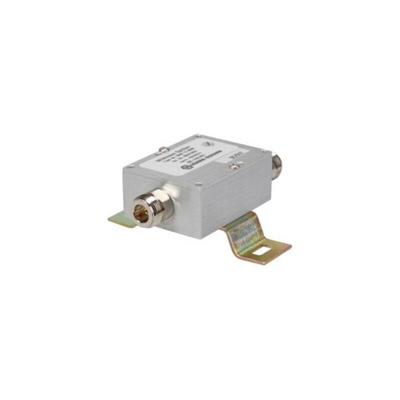

5502.17.0060, Huber+Suhner RF Power Divider, 2-Port, 2.7GHz Max, 3.4dB Max Loss

The Huber & Suhner Wilkinson style power divider has been designed for 10 W low power applications where output isolation is preferable over lowest possible loss. The wide frequency range of this design allows use with multiband antennas and leaky cable systems. For one designated output the DC path is blocked, which makes this splitter suitable to split a GPS signal with DC bias voltage from a cellular signal. This model has been designed and tested to meet the EN 61373:2010 cat 1 / class B(Vibration) and IEC 60068-2-27(mechanical shock) standards as recommended by EN 50155.

Shipped with mounting bracket and hardware attached to divider
Used in indoor environmental conditions

Datasheet - 5502.17.0060

Schematic - 5502.17.0060
