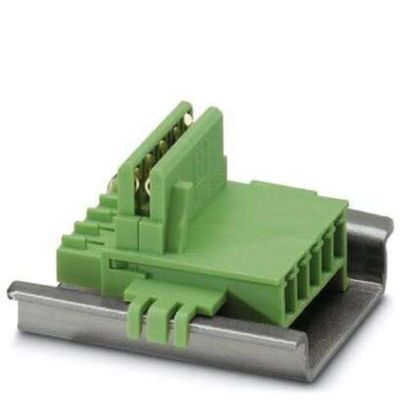

2707437, Phoenix Contact 5/ 5-ST-3, 5 TBUS 1, 81 GN, ME 22 Series DIN Rail Connector for Use with Connecting With Electronics

TBUS Connector - ME Series

Professional Phoenix Contact TBUS connector which allows you to bridge the input power between several simplex power supplies.

3.81 mm Pitch
5 Positions

The Phoenix Contact's DIN rail connector has nominal current of 8 A. It has rated voltage (III/2) of 125 V.

Maximum load current 8 A
Nominal voltage UN 125 V
Width 29.2 mm
Height 36.5 mm
Length 20.45 mm
Pitch 3.81 mm

Thermal Magnetic Convertible

All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).

Datasheet - 2707437
