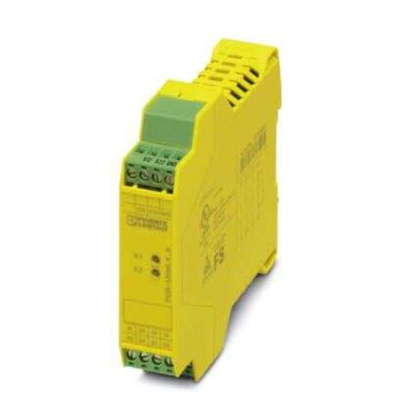

2903584, Phoenix Contact PSR-SPP-24DC/URML4/3X1/1X2/B Series Input/Output Module, 24 V

The Phoenix Contact's contact extension device is specifically designed for use in conjunction with electrosensitive protective equipment such as light grids. These systems generally have clocked OSSD signals which enable cross circuits in the cabling to be detected. The relay is resistant to the test pulses generated by the electrosensitive protective equipment receiver.

Mechanical service life approx. 107 cycles
nominal input voltage UN 24 V DC
Typical input current at UN 70 mA DC
Voltage at input/start and feedback circuit 24 V DC
Typical response time 25 ms
Typical release time 10 ms
Concurrence ∞
Recovery time 1 s

Datasheet - 2903584
