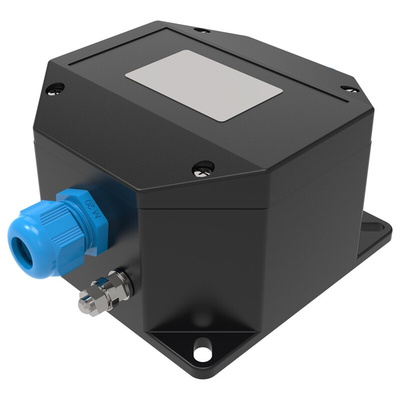

168802008, Rose Ex Polyester Series Black Glass Fibre Reinforced Polyester Junction Box, IP66, ATEX, 121 x 121 x 75mm

IP66 ATEX Explosion Protected Junction Boxes Ex Okta-Box

Rose Ex Okta junction boxes are a glass fibre reinforced thermoset enclosure made up of a polyester resin with graphite and to be used in all Ex-area. Specially designed to provide explosion protection plus are suitable for use on offshore platforms and in the petrochemicals industry. The octagonal design of the Ex enclosure which allows the enclosure installation when closed. The lid and base of the enclosure are fixed with stainless steel lid screws. The Ex junction box enclosures are IP 66 rated with full certification and explosion protection standards.

Features and Benefits

• Ex Okta Series junction box enclosure.
• Glass fibre reinforced thermoset polyester resin with graphite.
• Explosion protected.
• Octagonal design.
• Can be fitted when closed.
• Lid and base fixed with stainless steel screws.
• IP 66 to EN 60529.
• Impact resistant to 7 Joule EN 60079-0.
• Self-extinguishing to UL 94 V-O.
• Surface resistant to IEC 60093.
• Halogen free.
• Certified.
• Temperature range acc. T6 = 80°C max on surface temperature, -20°C to +40°C.
• Temperature range acc. T5 = 95°C max on surface temperature, -20°C to +55°C.
• Temperature range acc. T4 = 130°C max on surface temperature, -20°C to +90°C.
• Colour is black (RAL 9011).

Typical Applications.

• All Ex areas.

• Offshore platforms.

• Petrochemicals industry.

168802008 Technical Drawing
