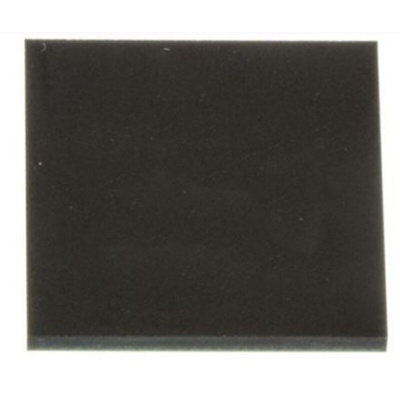

Renesas Electronics RC32614A000GBB#BC0, Frequency Synthesizer 3.465 V 144-Pin BGA

The Renesas Electronics ultra-low phase noise (UPN) system synchronizer. The device can be synchronized using the precision time protocol (PTP), synchronous Ethernet (SyncE), GNSS or other reference sources. It outputs ultralow phase noise clocks that can directly time SerDes up to 112Gbps. It supports ITU-T G.8273.2 T-BC and TTSC Class C and Class D time accuracy with tight control over clock skew and accurate phase measurement capabilities. Optional PTP clock manager (PCM4L) software is available under license from Renesas for use with the RC32614A. The PCM4L software, with the RC32614, meet ITU-T synchronization requirements in applications with full timing support (FTS), partial timing support (PTS) and assisted partial timing support (APTS).

Generates clocks with 88fs RMS of jitter
Generate any frequency from 0.5Hz to 1GHz
Four differential HCSL outputs
Ten differential / twenty LVCMOS outputs
Six DPLL/DCO channels
Compliant with ITU-T G.8262.1 and G.8262
Configurable as digital phase lock loop, digitally controlled oscillator or synthesizer
Per channel frequency resolution of 1.11 x 10-16
10 x 10 mm (with 0.8mm ball pitch) 144-CABGA package

Datasheet - RC32614A000GBB#BC0
