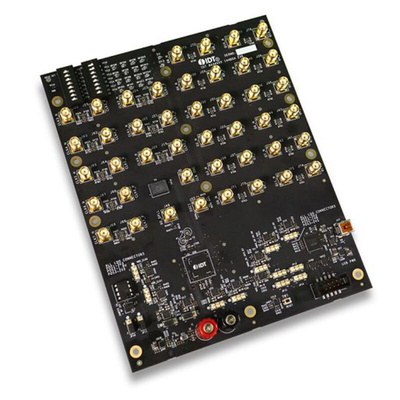

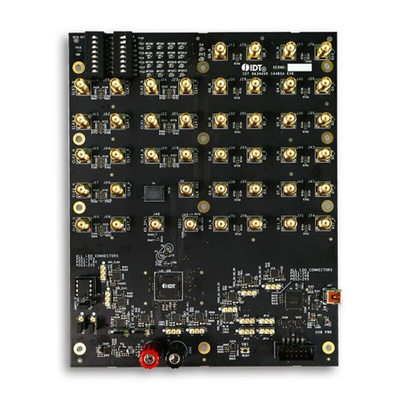

Renesas Electronics RC32614A-EVK, Evaluation Kit For RC32614A ClockMatrix Clock Synthesiser Evaluation Kit for RC32614A

The Renesas Electronics evaluation board allows customers to evaluate the Renesas Clock Matrix RC32614A device. The DPLL channels meet synchronous Ethernet requirements and they can be used for jitter attenuation and frequency translation. The kit includes RC32614A 144-BGA EVK evaluation board and USB type-C cable. The DCOs they can be programmed to synthesize the desired frequency and can be steered by external software with resolution of 1.11E-16. The DPLLs can lock to virtually any frequency from 0.5Hz to 1GHz and the DPLLs and DCOs can generate virtually any frequency from 0.5Hz to 1GHz with ultra-low phase noise <100fs RMS from 12kHz to 20MHz.

4 differential clock inputs
14 differential outputs
2 serial port channels
On-board EEPROM
On-board miniOCXO
16 GPIO controls
Selectable voltage controls
