RS PRO Separator for Use with Feed Through Terminal Block

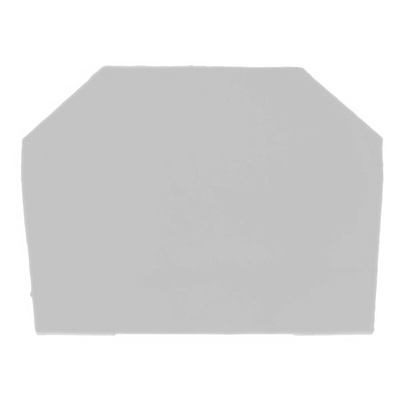

RS PRO Separator Plate

Use this separator at the end of a row of terminals. It is necessary to insert end plates to ensure contact protection is maintained when terminals of different sizes are used within the same terminal block. The outer dimensions of the separator correspond to the dimensions of the terminals. The use of end plates increases air and creepage distances, which in turn affect voltage values. Locking pegs ensure that end plates can be mounted quickly.

Features and Benefits

• Flat separator


• Grey


• Increases air and creepage distances


• For feed through terminal blocks


• Locking pegs

Specification

• Material PA 66 – V2


• Length: 55 mm


• Width: 1.5 mm


• Height: 44 mm

Compatible With

• RS PRO Feedthrough Terminal Blocks – 24-12 AWG


• RS PRO Feedthrough Terminal Block – 24-10 AWG

Applications

• DIN Rail Feed Through Terminal Blocks


• Control Panels
