RS PRO Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP65

RS PRO Emergency Stop Push Button Complete Unit

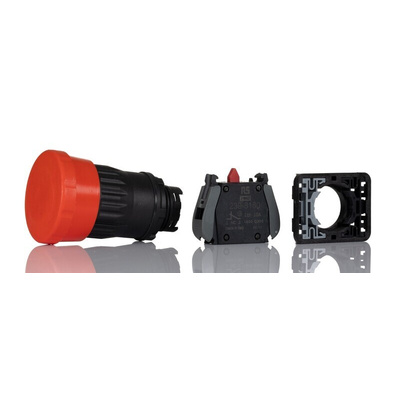

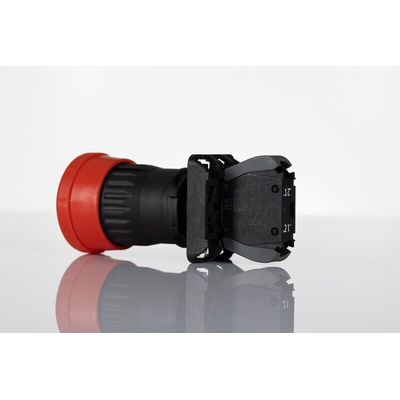

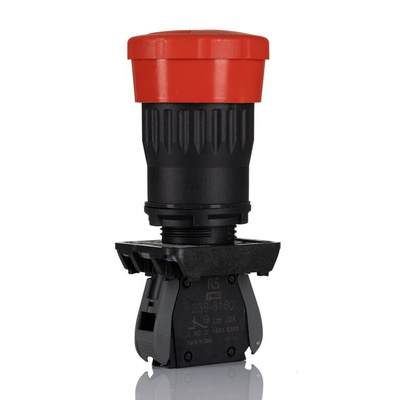

Use this emergency stop pushbutton unit to halt operations. These mushroom head style complete units are made from high-quality materials and include a red push button with latch & twist release, contact blocks, and a support base. Upon inspection, the emergency push button head is non-illuminated, has a thermoplastic casing, available NO or NC contact block configuration, and is designed to be front panel mounted.

Where would you use E-STOP units?

The E-STOP device SA series can be used for emergency stop signal generation in dangerous situations. Equipped with a certified emergency button, SA E-STOP devices guarantee maximum reliability and ease of installation. The SA series E-STOP devices can be used all over the world thanks to the compliance of the ECX 4580 pushbutton with EN / IEC 60947-5-1, EN / IEC 60947-5-5, EN ISO 13850, and UL NISD category.

Features and Benefits

• E-STOP


• Mushroom push button head


• Latch, twist to release


• Colour: Red


• 24 VAC/VDC


• Contact Configuration: 1NC


• Support base


• Front panel mount


• Connecting Terminals: Screw with captive cable clamp


• Cut-out Diameter: 22.5 mm


• Outer diameter: 40 mm


• IP Rating: IP65, IP20

Applications

• Automotive


• Building and Public Works


• Industrial Controls


• Control System


• Lighting Controls


• Medical Equipment

Why would you choose RS PRO Emergency Push Buttons?

RS PRO offers a comprehensive range of emergency stop push button complete units. Each unit is high-quality and available in a variety of contact configurations designed to suit your application. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

FAQ's

Can the emergency head button be purchased separately?

Yes, please see RS stock no: 242-0835

RS PRO Datasheet
