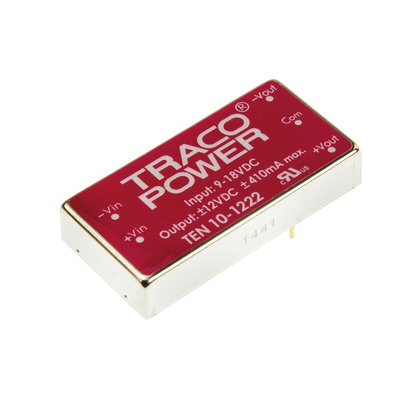

TEN 10-1222, TRACOPOWER TEN 10 DC-DC Converter, ±12V dc/ ±415mA Output, 9 → 18 V dc Input, 10W, Through Hole, +85°C Max Temp, Преобразователь

Traco 10W Regulated Isolated DC-DC Converter - TEN10 Series

10W single/dual output regulated isolated high performance DC-DC converters with a compact low profile package. These DC-DC converters have a high efficiency enabling an operating temperature range of -40°C to +85°C and a built-in EMI filter to EN 5022 class A without external components. Typical applications for these DC-DC converters include battery operated equipment, instrumentation, distributed power architectures in communication and industrial electronics.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Wide 2:1 input range
1.5kVdc input/output isolation, case 1kVdc
Input filter to EN55022 Class A and FCC Level A without external components
Regulated outputs
Continuous short circuit protection
Shielded metal case with insulated base-plate
SMD technology with ceramic chip capacitors

Standards

UL 60950-1, IEC / EN 60950-1

Approvals

UL/cUL

Datasheet

Industrial Power Solutions Catalogue

Selection Guide
