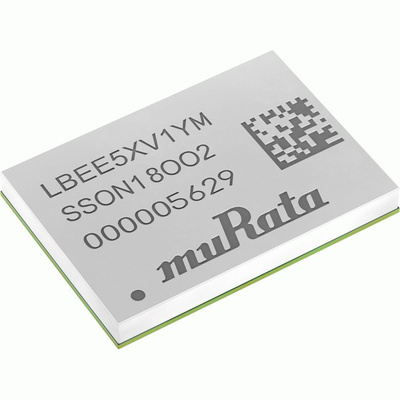

Murata LBEE5XV1YM-574 Bluetooth Module Bluetooth 5.2

The Murata the type 1YM is a small and very high performance module based on NXP 88W8997 combo chipset which supports Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO + Bluetooth 5.2 BR/EDR/LE up to 866Mbps PHY data rate on Wi-Fi and 3Mbps PHY data rate on Bluetooth. The WLAN section supports PCIe v3.0 Gen 1/Gen 2 rate (2.5/5 Gbps), and SDIO 3.0 interfaces. The Bluetooth section supports high-speed 4-wire UART interface and PCM for audio data. The 88W8997 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth collaboration is optimized for maximum performance.

2.4 GHz & 5 GHz Wi-Fi + Bluetooth Module
Chipset NXP 88W8997
Processor No
FCC/IC "Reference" Certified
For Industrial IoT, Smart Home, Audio/4K Video/Voice, Gateway
802.11 a/b/g/n/ac 2´2 MIMO 866Mbps
NXP i.MX Linux, Android

Datasheet - LBEE5XV1YM-574
