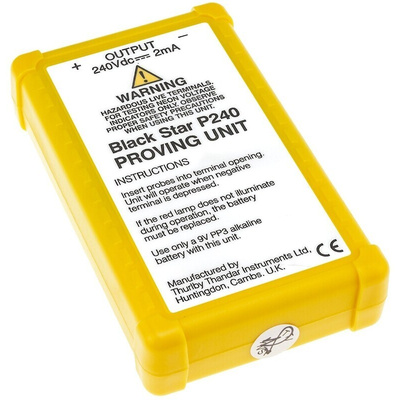

Black Star 59180-8020 Proving Unit 2mA 240V

240V Proving Unit for Neon Voltage Indicators

A handheld, battery powered proving unit able to provide a nominal 240Vdc, 2mA source to prove the integrity of neon type test voltage indicators
For safety, voltage indicators should be checked for correct operation from this known voltage source before and after every use

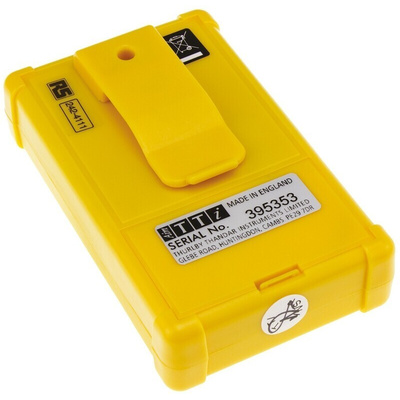

The unit is housed in a compact ABS plastic case and fitted with a belt clip for convenience

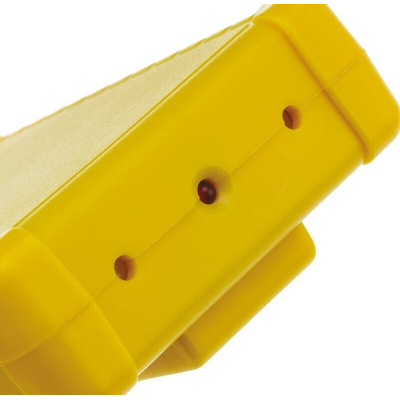

An LED is used to indicate battery condition

Note

This product will only work with test voltage indicators that have an input impedance of greater than 120kΩ.

Black Star Voltage Indicator Proving Unit

The Black Star voltage indicator proving unit has an output voltage rating of 240VDC and a test current rating of 2mA source to prove the integrity of neon type test voltage indicators. This product will only work with test voltage indicators that have an input impedance greater than 120kOhm. For safety, voltage indicators should be checked for correct operation from this known voltage source before and after every use.
Note
:
This product will only work with test voltage indicators that have an input impedance of greater than 120kΩ.

Features and Benefits

Housed in a compact ABS plastic case and fitted with a belt clip for convenience
LED is used to indicate battery condition

Applications

Electrical systems

Electronic industry
Industrial sites
Commercial sites
