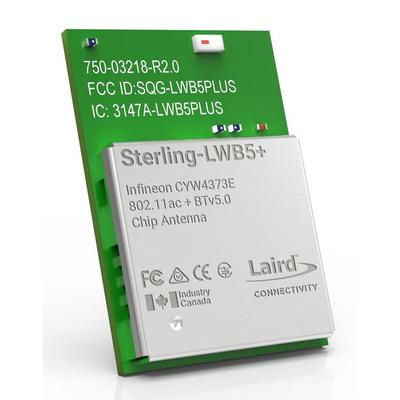

Laird Connectivity 453-00045C Bluetooth Module 5.2

THE LAIRD CONNECTIVITY LWB5+ series wireless module is an integrated, small form factor 1x1 SISO 802.11 a/b/g/n/ac WLAN plus dual-mode Bluetooth 5.2 low energy module that is optimized for low-power mobile devices. The integration of all WLAN and Bluetooth functionality in a single package supports low cost and simple implementation along with flexibility for platform-specific customization. This device is pre-calibrated and integrates the complete transmit/receive RF paths including diplexer, switches, reference crystal oscillator, and power management units (PMU). The integrated ceramic chip antenna, MHF4 RF connector, and RF trace pad are selectable from different variants.

Operating Temperature -40° to +85°C (-40° to +185°F)
Operating Humidity 10 to 90% (non-condensing)
Storage Temperature -40° to +85°C (-40° to +185°F)
Storage Humidity 10 to 90% (non condensing)
MSL (Moisture Sensitivity Level) 4
Maximum Electrostatic Discharge Conductive 4KV & Air coupled 8KV

Datasheet - 453-00045C
